A highway engineer is designing curbing for a street at an intersection where two highways meet at an angle $\phi,$ as shown in the figure. The curbing between points $A$ and $B$ is to be constructed using a circle that is tangent to the highway at these two points. (a) Show that the relationship between the radius $R$ of the circle and the distance $d$ in the figure is given by the equation $d=R \tan (\phi / 2)$ (b) If $\phi=45^{\circ}$ and $d=20 \mathrm{ft},$ approximate $R$ and the length of the curbing. (PICTURE CANNOT COPY)

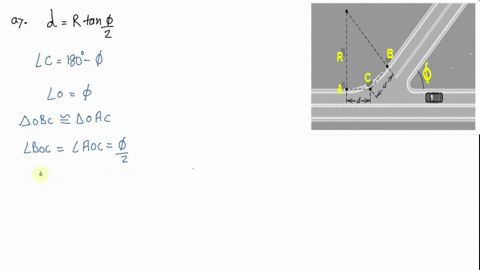

A highway engineer is designing curbing for a street at an intersection where two highways meet at an angle $\phi,$ as shown in the figure. The curbing between points $A$ and $B$ is to be constructed using a circle that is tangent to the highway at these two points.
(a) Show that the relationship between the radius $R$ of the circle and the distance $d$ in the figure is given by the equation $d=R \tan (\phi / 2)$
(b) If $\phi=45^{\circ}$ and $d=20 \mathrm{ft},$ approximate $R$ and the length of the curbing.
(PICTURE CANNOT COPY)

Key Concepts

Arc Length

Arc length refers to the distance along the curved path of a circle between two points. It is directly related to both the radius and the angle subtended by the arc. Arc length calculations are important in engineering and design applications where curved paths are involved, providing a means to approximate the physical distance along a circular segment.

Circle Geometry

Circle geometry deals with the properties and relationships inherent to circles, including concepts like radius, diameter, chords, and arcs. In problems involving circles, understanding how these elements interact is essential, especially when determining distances or constructing tangents that relate the circle to external lines or points.

Tangent Lines

A tangent line to a circle is a straight line that touches the circle at exactly one point. A crucial property of tangents is that they are perpendicular to the radius drawn to the point of contact. This perpendicularity is often used to construct right triangles, which then facilitate the application of trigonometric relationships in solving geometric problems.

Trigonometric Ratios

Trigonometric ratios, such as the tangent function, play a central role in relating angles to side lengths in right-angled triangles. In the context of circle problems, these ratios help translate geometric relationships (like the relation between an angle created by intersecting lines and the distances from the circle’s center) into algebraic equations, as seen in the relationship d = R tan(?/2).
