A horizontal bar is used to support a 75-kg object between two walls, as shown in Fig. 5-32. The

step 1 So we're going to be looking at problem 13 from chapter 5 of the physics with book. The question

A horizontal bar is used to support a 75-kg object between...

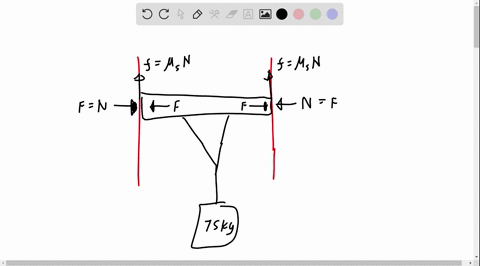

A horizontal bar is used to support a $75-\mathrm{kg}$ object between two walls, as shown in Fig. 5-32. The equal forces $F$ exerted by the bar against the walls can be varied by adjusting the length of the bar. Only friction between the ends of the bar and the walls supports the system. The coefficient of static friction between bar and walls is $0.41$. Find the minimum value of the forces $F$ for the system to remain at rest.

Key Concepts

Static Equilibrium

Static equilibrium is the state in which an object or system remains at rest because the sum of all forces and the sum of all torques acting on it are zero. This principle is fundamental in statics as it ensures that neither translational nor rotational motion occurs, and is used to set up equations that relate forces, moments, and other relevant quantities.

Friction

Friction is the resistive force that arises when two surfaces interact. In static situations, the static friction force prevents motion up to a maximum value determined by the product of the coefficient of static friction and the normal force. Understanding friction is key in determining the conditions under which a system will begin to slip or remain stationary.

Torque Equilibrium

Torque equilibrium involves ensuring that the sum of the torques (moments) about any axis is zero, which prevents rotational motion. This concept is used to analyze how forces applied at various points on a body contribute to a turning effect, and it is crucial for understanding how balance is maintained in systems supporting loads.

Normal Force

The normal force is the perpendicular contact force exerted by a surface in response to an applied load. It is a critical component in friction calculations because the maximum static friction force is directly proportional to the normal force. In problems involving contact and support, the normal force plays a central role in determining stability and resistance to sliding.
