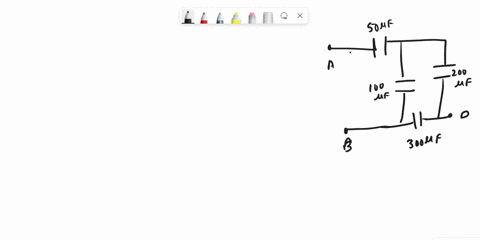

(a) If C=50 μF in Fig. 25-52, what is the equivalent...

(a) If $C=50 \mu \mathrm{F}$ in Fig. $25-52,$ what
is the equivalent capacitance between
points $A$ and $B ?$ (Hint: First imagine
that a battery is connected between
those two points.) (b) Repeat for points
$A$ and $D .$

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Equivalent Capacitance

This is the concept of replacing a complex network of capacitors with a single capacitor that would store the same amount of charge at a given voltage. Understanding equivalent capacitance allows one to simplify circuits by determining the overall effect of series and parallel combinations of capacitors.

Series Capacitance

In a series configuration, the reciprocal of the total or equivalent capacitance is the sum of the reciprocals of the individual capacitances. This configuration reduces the overall capacitance because the charge stored is the same through each capacitor, while the voltage divides among them.

Parallel Capacitance

For capacitors arranged in parallel, the equivalent capacitance is simply the sum of the individual capacitances. This increases the total capacitance because the effective plate area, where charge is stored, is enlarged, allowing more charge to be accumulated at a given voltage.

Circuit Analysis with a Battery

Considering a battery connected between two points in a circuit aids in analyzing voltage differences and charge distribution across the capacitor network. This approach provides a method for determining how capacitors combine when viewed from different nodes, thereby simplifying the calculation of equivalent capacitance.
