(a) In Fig. 27-50, what value must R have if the current in...

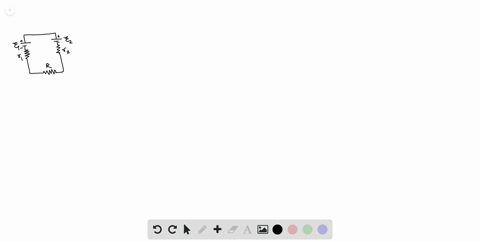

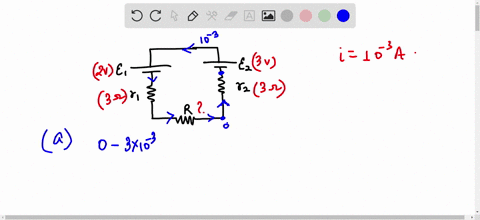

(a) In Fig. 27-50, what value must $R$ have if the current in the circuit is to be $1.5 \mathrm{~mA}$ ? Take $\mathscr{\&}_{1}=2.0 \mathrm{~V}, \mathscr{E}_{2}=3.0 \mathrm{~V}$, and $r_{1}=r_{2}=3.0 \Omega$. (b) What is the rate at which thermal energy appears in $R ?$

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Kirchhoff's Voltage Law

This law states that the algebraic sum of all voltages in a closed circuit loop must equal zero. It is essential for analyzing complex circuits with multiple sources and resistive elements, as it allows for the formulation of equations that describe how potential differences are distributed across various components.

Ohm's Law

Ohm's law defines the relationship between voltage, current, and resistance in an electrical circuit, expressed as V = IR. This fundamental principle is used to determine unknown quantities when two of these three parameters are known, making it a cornerstone for circuit analysis and design.

Internal Resistance of Sources

Real voltage sources, such as batteries, have internal resistance which affects the overall performance of a circuit. The presence of internal resistance influences the terminal voltage and must be included in circuit calculations to accurately predict current flow and voltage drops across the external components.

Joule Heating (Thermal Energy Dissipation)

Joule heating refers to the process where electrical energy is converted into thermal energy as current flows through a resistor. The power dissipated, given by the formula P = I²R, describes the rate at which heat is produced, which is critical for understanding energy efficiency and thermal management in circuits.
