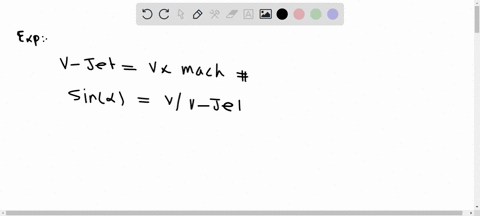

A jet plane passes over you at a height of 5000 m and a speed of Mach 1.5 (a) Find the Mach cone

step 1 So airplane flies with a velocity 1 .5 times the speed of sound. And it flies at a height of 5 k

A jet plane passes over you at a height of 5000 m and a...

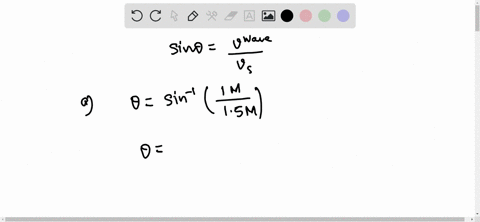

A jet plane passes over you at a height of 5000 $\mathrm{m}$ and a speed of Mach 1.5 (a) Find the Mach cone angle (the sound speed is 331 $\mathrm{m} / \mathrm{s} )$ . (b) How long after the jet passes directly overhead does the shock wave reach you?

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Mach Number

The Mach number is defined as the ratio of an object's speed to the speed of sound in the surrounding medium. It is used to determine whether the object is traveling at subsonic, transonic, supersonic, or hypersonic speeds. This concept is crucial because it directly influences how sound waves are produced and propagated by the moving object.

Mach Cone

The Mach cone is the conical shock wave formed by an object moving at supersonic speeds. Its half-angle is determined by the relationship sin(?) = 1/(Mach Number). This cone represents the boundary between the disturbed and undisturbed air, and understanding its geometry is essential for determining the areas affected by the shock waves produced by supersonic travel.

Shock Wave Propagation and Time Delay

When a supersonic object passes overhead, the shock wave it generates takes a finite time to reach an observer. This delay is determined by the propagation speed of sound in the medium and the geometry of the Mach cone. Calculating the time delay involves understanding how the sound wave travels relative to the observer's position and the altitude at which the object is flying.
