A laser beam traveling in air strikes the midpoint of one...

A laser beam traveling in air strikes the midpoint of one end of a slab of material, as shown in the figure (in the next column). The index of refraction of the slab is $1.48 .$ Determine the number of internal reflections of the laser beam before it finally emerges from the opposite end of the slab. (FIGURE CAN'T COPY)

Key Concepts

Geometrical Analysis of Light Paths

Geometrical analysis involves using the geometry of the material's boundaries and the path of the light beam to determine the number of times the beam will internally reflect before emerging. It relies on understanding the angles of incidence, reflection, and the physical dimensions of the material.

Total Internal Reflection

Total internal reflection occurs when a light ray traveling within a medium with a higher index of refraction strikes the boundary with a medium of lower index at an angle greater than the critical angle, causing all the light to be reflected back into the medium. This phenomenon is central to understanding how the beam undergoes multiple internal reflections within the slab.

Index of Refraction

The index of refraction describes how much a light wave slows down as it propagates through a medium compared to its speed in a vacuum. It is crucial in determining the bending of light at interfaces and sets the stage for applying Snell's law in optical problems.

Snell's Law

Snell's law establishes the relationship between the angles of incidence and refraction at the boundary between two media with different indices of refraction. This law is essential for predicting the change in direction of a laser beam as it enters and exits a material slab.

Transcript

00:01 So we have a laser beam that hits the end of a slab of material.

00:04 The index of the slab of material is 1 .48.

00:10 The index of the air is just one.

00:15 They give us the initial or the incident angle of that light beam, and we're asked to find the number of times that the light beam hits the edges of the slab, or the number of internal reflections of the laser beam before it emerges from the opposite end.

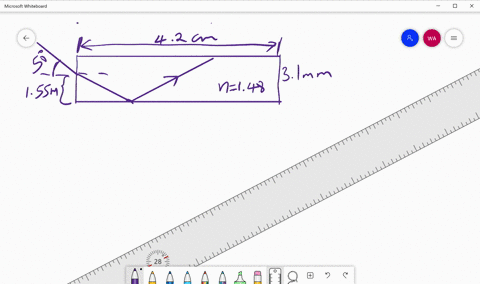

00:34 We are given the dimensions of the slab.

00:36 It's 42 centimeters one way.

00:38 I'm going to go back to black here.

00:40 42 centimeters in length and we are given its width which is 3 .1 millimeters.

00:55 So using the geometry of of, oops, millimeters, not centimeters, 3 .1 millimeters.

01:04 This way.

01:05 So we know that it hits exactly halfway on the short side of the slab.

01:10 So this here would be half of 3 .1 or 1 .55.

01:15 And as the bottom, half would be as well, millimeters.

01:19 So we need to figure out, first of all, how the light ray bends, and then how many times it bounces inside the material before it exits on the other side.

01:29 So using snell's law, we can do n1, sine theta, 1 equals n2 sine theta 2.

01:39 And the first index is air.

01:41 It's coming from air, where the angle in air is 50.

01:45 It goes to the substance, which has an index of 1 .48, and we don't know the angle in the substance.

01:52 We need to use snell's law to find it.

01:54 So the sign of 50 times 1 divided by 1 .48 is .5176, just to get the sign of the angle all by itself.

02:04 And then using inverse sign on your calculator, you can find that the angle is 31 .17 degrees.

02:12 So that's helpful to start because now we know that, well, we knew it bent toward the normal.

02:17 We knew the angle would be smaller than 50.

02:19 But this angle here is 31 .17.

02:25 That's the same as this angle here.

02:28 So now we can figure out what this distance is...
