A light ray in the core (n=1.40) of a cylindrical optical...

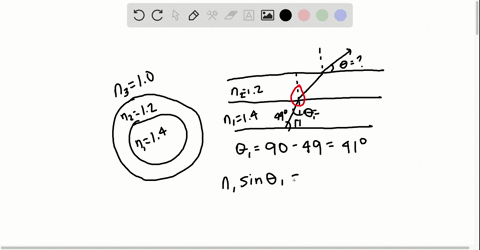

A light ray in the core $(n=1.40)$ of a cylindrical optical fiber travels at an angle $\theta_{1}=49.0^{\circ}$ with respect to the axis of the fiber. A ray is transmitted through the cladding $(n=$ $1.20$ ) and into the air. What angle $\theta_{2}$ does the exiting ray make with the outside surface of the cladding?

Key Concepts

Snell's Law

Snell’s Law describes how a light ray refracts when it passes from one medium to another with a different refractive index. This law relates the sines of the angles of incidence and refraction to the corresponding refractive indices. It is crucial for predicting how light changes direction at the interfaces between the core, cladding, and air.

Optical Fiber Structure

Optical fibers are composed of a high-index core surrounded by a lower-index cladding. This structure enables the confinement and guiding of light within the core via total internal reflection. Understanding the role of the core-cladding configuration is essential for analyzing the behavior of light as it propagates and exits the fiber.

Refractive Index and Light Propagation

The refractive index of a medium determines how much light slows down and bends when entering that medium. Variations in refractive index between the core, cladding, and external environment (such as air) affect the light's propagation direction. This concept is fundamental when determining the angles at which light exits the fiber.

Angle Conventions in Cylindrical Geometries

In cylindrical optical fibers, angles can be defined with respect to different reference directions, such as the fiber axis or the normal to the interface surfaces. Proper interpretation and conversion between these conventions are necessary to correctly apply laws like Snell’s Law and to determine the exit angle of the ray at the fiber boundary.
