A lightbulb marked "75 W [at] 120 V^m is screwed into a socket at one end of a long extension c

A lightbulb marked "75 W [at] 120 V^m is screwed into a...

Key Concepts

Rated Power and Voltage Specifications

Electrical devices like lightbulbs are often marked with a rated power and a voltage (for example, 75 W at 120 V). These ratings indicate the expected performance under ideal conditions. However, when additional circuit elements that add resistance (such as an extension cord) are present, the actual operating conditions may deviate from the ratings, emphasizing the importance of understanding how circuit modifications affect performance.

Series Circuit Analysis

This concept involves recognizing that when circuit elements such as a lightbulb and extension cord wires (modeled as resistors) are connected end-to-end, they add together to form a single, cumulative resistance. In the context of the problem, the resistance of both conductors in the extension cord is added to the intrinsic resistance of the lightbulb, affecting the total voltage drop and current flow through the circuit.

Ohm's Law

Ohm's Law is fundamental to understanding electric circuits; it relates the voltage (V), current (I), and resistance (R) by the equation V = IR. In this problem, Ohm's Law is essential to calculate the current flowing through the circuit once the total resistance is known, and to understand how the voltage from the outlet is divided among the series elements.

Electrical Power Calculation

The calculation of electrical power involves using relationships such as P = IV, P = I²R, or P = V²/R. In this problem, after determining the circuit current using Ohm's Law, these formulas help compute the actual power delivered to the lightbulb, which may differ from its rated power due to additional resistance from the extension cord.

Resistive Losses

Resistive losses refer to the power dissipated as heat in the conductors due to their inherent resistance. In practical circuits, such as the one described in the problem, the resistance of the extension cord’s wires leads to a voltage drop before the power reaches the lightbulb, thereby reducing the voltage available to the bulb and its power consumption compared to its rated specifications.

Transcript

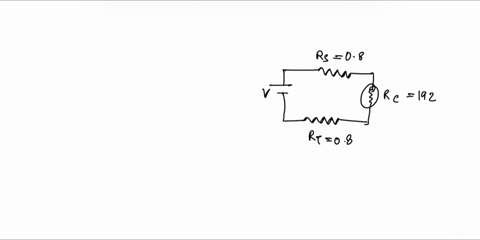

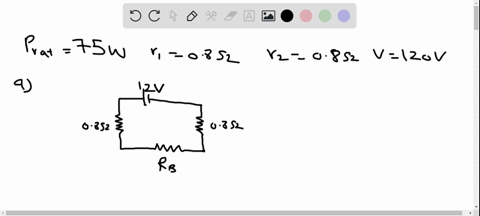

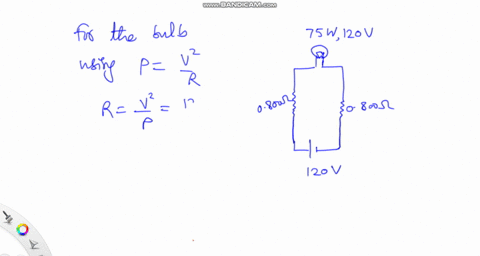

00:01 So we have a light bulb okay this is what the light bulb specifies that it functions the 75 watts power if it has a 120 potential difference okay so we know that this is connected to the current that actually says it has 120 potential difference but since it has long extension card you know these are two wires okay so each one of these two conductive wires has a resistance of 0 .8 om so the question is what is the actual power that this light bulb presents okay so we want to draw which one is the circuit so we know that the light ball it's here as a resistance well actually we don't know the resistance but this represents the light ball and to each one of the sides we have two resistance okay of the same value which is actually 0 .8 oms this is on each side and and we have 120 difference of potential.

01:41 So this is the circuit and we want to know what is the power in this resistance.

01:47 So you can notice that we actually don't know what the resistance of the light bulb is.

01:53 So we have to find it.

01:56 Okay, so we know that theoretically, okay, or in theory, theory, theory okay we have a power for the lifeboat that's 75 watts and we have a potential difference of 120 so we can find the current because we know that the current is the power divided by the by the i'm sorry potential difference, okay? and so we just divide this over 120 to find that the current, or in theory the current, it must be 0 .625 ampere to have these values, okay? and now that we have the current, we can actually find the resistance of the light bulb, which is just the potential difference divided by the current, so we have 120 volts divided by 0 .6 25 ampere and this is going to be and i'm going to mark it in another color 192 oz so this is the resistance of the label like all okay so now that i know this value i can actually calculate the total resistance of this to know what is the actual current they remember that in the circuit we have the same current in each one of the resistance so the total resistance is going to be 192 with some these two 0 .8 plus 0 .8 and this is going to be 193 omm.

03:59 Okay so this is the total resistance of the circuit and i can find then the total current.

04:06 Okay, so this is going to be the actual potential difference that i know this...
