Question
A mechanic uses a crowfoot wrench to loosen a bolt at $C .$ Themechanic holds the socket wrench handle at points $A$ and $B$ andapplies forces at these points. Knowing that these forces are equivalent to a force-couple system at $C$ consisting of the force $C=$$-\left(8 \text { lb) i }+\left(4 \text { lb) } k \text { and the couple } M_{C}=(360\text { Ib. in. ) is determine the } \right.\right.$forces applied at $A$ and at $B$ when $A_{i}=2$ lb.
Step 1
For equilibrium in the y direction, we can write $F_{A_y} + F_{B_y} = 0$. Let's call this equation (1). For equilibrium in the x direction, we can write $F_{A_x} + F_{B_x} = 8$. Let's call this equation (2). Show more…
Show all steps
Your feedback will help us improve your experience
Vidhi Bhatt and 64 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
A mechanic uses a crowfoot wrench to loosen a bolt at $C .$ The mechanic holds the socket wrench handle at points $A$ and $B$ and applies forces at these points. Knowing that these forces are equivalent to a force-couple system at $C$ consisting of the force $C=-(8 ext { lb) i }+(4 ext { lb) } k ext { and the couple } M_{C}=(360 ext { Ib. in. ) i determine the }$ forces applied at $A$ and at $B$ when $A_{i}=2$ lb.

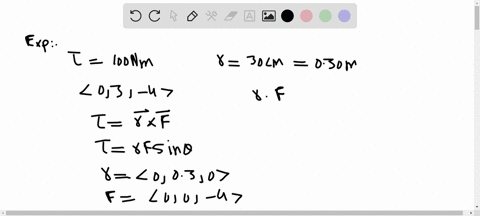

The torque wrench $A B C$ is used to measure the moment or torque applied to a bolt when the bolt is located at $A$ and a force is applied to the handle at $C .$ The mechanic reads the torque on the scale at $B$. If an extension $A O$ of length $d$ is used on the wrench, determine the required scale reading if the desired torque on the bolt at $O$ is to be $M$.

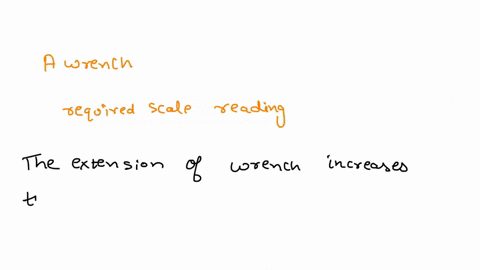

The torque wrench $A B C$ is used to measure the moment or torque applied to a bolt when the bolt is located at $A$ and a force is applied to the handle at $C$. The mechanic reads the torque on the scale at $B$. If an extension $A O$ of length $d$ is used on the wrench, determine the required scale reading if the desired torque on the bolt at $O$ is to be $M$.
