A mobile at the art museum has a 2.0 kg steel cat and a 4.0...

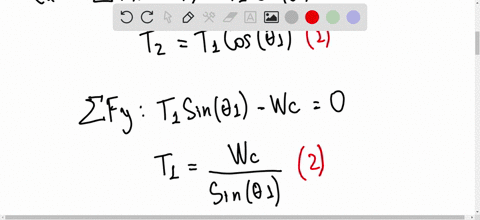

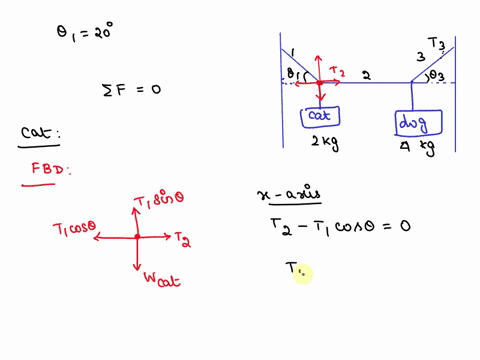

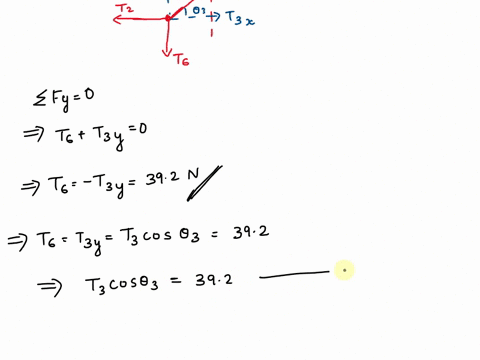

A mobile at the art museum has a $2.0 \mathrm{kg}$ steel cat and a $4.0 \mathrm{kg}$ steel dog suspended from a lightweight cable, as shown in FiGURE EXZ.17. It is found that $\theta_{1}=20^{\circ}$ when the center rope is adjusted to be perfectly horizontal. What are the tension and the angle of rope $3 ?$

Key Concepts

Vector Decomposition

Vector decomposition involves breaking a vector into its horizontal and vertical components, typically using trigonometric functions. This technique is essential in equilibrium problems, as it allows the analysis of forces in each independent direction, ensuring that both the sum of the horizontal forces and the sum of the vertical forces are zero.

Static Equilibrium

Static equilibrium is the condition in which an object or structure remains at rest, meaning that the sum of all forces and moments (torques) acting upon it is zero. In problems like the mobile, this principle is used to set up equations ensuring that both horizontal and vertical forces balance perfectly, enabling the computation of unknown tensions and angles.

Free-Body Diagram (FBD)

A free-body diagram is a graphical illustration used to visualize all the forces acting on a single body or component. In cable and pulley systems or suspended objects, FBDs help break down the problem by isolating each mass and cable, thereby clarifying how the gravitational forces, tensions, and any other external forces interact.

Tension Force

Tension is the pulling force transmitted along a string, rope, cable, or similar object when it is subjected to forces acting from opposite ends. In the context of the mobile problem, analyzing the tension in the cables is crucial for determining how forces balance, as the tension must be sufficient to support the weight of the suspended objects while also providing the necessary horizontal component to maintain equilibrium.

Gravitational Force

Gravitational force, or weight, is the force exerted on a mass due to gravity, calculated as the product of mass and the acceleration due to gravity. In static equilibrium problems, this downward force must be counterbalanced by the vertical components of the tensions in the cables, forming the basis for setting up the equations needed to solve for unknown quantities.
