A new high-efficiency home heating system includes an...

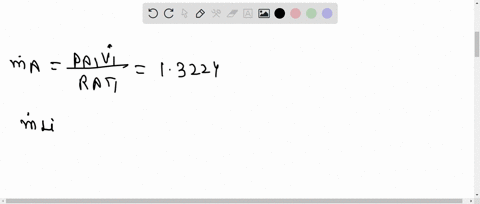

A new high-efficiency home heating system includes an air-to-air heat exchanger, which uses energy from outgoing stale air to heat the fresh incoming air. If the outside ambient temperature is $-10^{\circ} \mathrm{C}$ and the relative humidity is $30 \%,$ how much water will have to be added to the incoming air, if it flows in at the rate of $1 \mathrm{m}^{3} / \mathrm{s}$ and must eventually be conditioned to $20^{\circ} \mathrm{C}$ and $40 \%$ relative humidity?

Key Concepts

Airflow and Mass Flow Rate Considerations

Airflow rate and mass flow rate are key parameters in HVAC system design, influencing the calculation of moisture content in moving air. The volumetric flow rate of air can be converted to a mass flow rate by using the density of air, which is crucial for determining how much water vapor is present and, consequently, how much water must be added or removed to meet specific humidity targets.

Air-to-Air Heat Exchangers

Air-to-air heat exchangers are devices used in HVAC systems to transfer thermal energy between two separate air streams without mixing them. They work by recovering heat from outgoing stale air to preheat incoming fresh air, thereby improving energy efficiency. However, because these exchangers typically do not transfer moisture, they may require supplementary humidification or dehumidification to achieve the desired indoor air quality and comfort levels.

Relative Humidity and Absolute Humidity

Relative humidity is a measure of how much water vapor is present in the air compared to the maximum amount the air can hold at a given temperature, expressed as a percentage. Absolute humidity, on the other hand, quantifies the actual mass of water vapor per unit volume of air. Understanding both relative and absolute humidity is critical when conditioning air, as it determines not only the comfort level but also the necessary adjustments (such as adding or removing moisture) in HVAC applications.

Psychrometrics

Psychrometrics is the study of the physical and thermodynamic properties of moist air. It examines how temperature, humidity, pressure, and moisture content interact, allowing for the analysis of air conditions in various environments. This concept is essential when determining how changes in temperature affect the air’s capacity to hold moisture, and it provides the foundation for designing and evaluating HVAC systems and their components.
