A nylon guitar string has a linear density of 7.20 g / m and is under a tension of 150 N . The f

step 1 So in this question, we have a guitar string that vibrates, that has a distance D, and it vibrat

A nylon guitar string has a linear density of 7.20 g / m and...

A nylon guitar string has a linear density of 7.20 $\mathrm{g} / \mathrm{m}$ and is under a tension of 150 $\mathrm{N}$ . The fixed supports are distance $D=90.0 \mathrm{cm}$ apart. The string is oscillating in the standing wave pattern shown in Fig. $16-39$ . Calculate the (a) speed, (b) wavelength, and (c) frequency of the traveling waves whose superposition gives this standing wave.

A nylon guitar string has a linear density of 7.20 $\mathrm{g} / \mathrm{m}$ and is under a
tension of 150 $\mathrm{N}$ . The fixed supports are
distance $D=90.0 \mathrm{cm}$ apart. The string
is oscillating in the standing wave pattern shown in Fig. $16-39$ . Calculate the (a) speed, (b) wavelength, and
(c) frequency of the traveling waves whose superposition gives this
standing wave.

Key Concepts

Tension in a String

Tension is the force applied along a string or rope that directly affects its vibrational properties. In the context of waves, the greater the tension in the string, the faster disturbances can travel along it, which directly influences both the speed of the wave and the frequencies of the standing wave patterns that can be established.

Linear Mass Density

Linear mass density is a measure of how much mass is contained in a unit length of the string. It is a crucial factor in determining the dynamic behavior of the string because, along with tension, it influences the speed at which waves propagate through the medium.

Wave Speed on a String

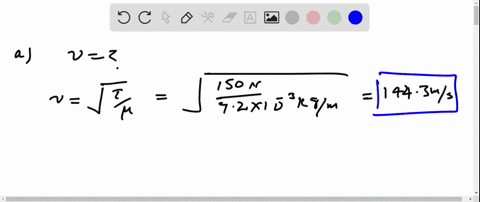

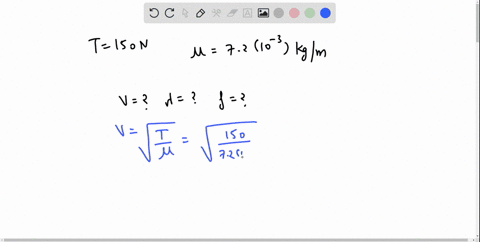

Wave speed on a string is determined by the balance between the tension in the string and its linear mass density. This is expressed by the formula v = sqrt(T/µ), indicating that the speed of a wave increases with higher tension and decreases with higher mass density. Understanding this relationship is fundamental when analyzing the behavior of traveling waves on a medium.

Standing Waves

Standing waves are formed by the superposition of two traveling waves of identical frequency and amplitude moving in opposite directions. They are characterized by nodes, where the amplitude remains zero, and antinodes, where the amplitude oscillates maximally. These patterns are particularly important in musical instruments, as they determine the resonant frequencies and the harmonic content of the sound produced.

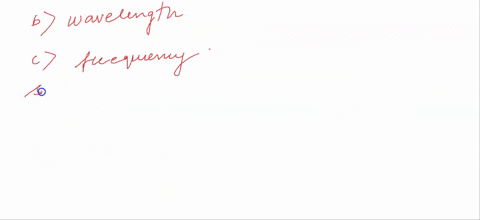

Wavelength and Frequency in Standing Waves

In a standing wave pattern, the wavelength is related to the physical dimensions of the string and the boundary conditions imposed by its fixed ends. For a string fixed at both ends, the allowed wavelengths are typically given by ? = 2L/n, where L is the length of the string and n is an integer representing the harmonic number. The frequency is then found using the relationship f = v/?, linking wave speed, wavelength, and the resulting pitch produced by the vibrating string.
