A p -channel JFET has device parameters of ID S S=7.5 mA and VP=4 V. Sketch the transfer chara

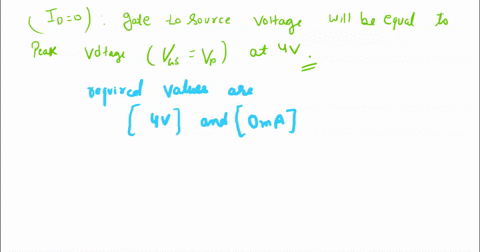

step 1 In this problem, we're asked to find the device current when VGS is zero volts, given the parame

A p -channel JFET has device parameters of ID S S=7.5 mA...

Key Concepts

JFET Operation Modes

A Junction Field-Effect Transistor (JFET) is a semiconductor device that controls current flow through an electric field applied across a pn-junction. It operates predominantly in the depletion mode, where applying a reverse bias to the gate reduces the conductivity of the channel. The device behavior is characterized by different regions such as the ohmic (linear) region and the saturation (pinch-off) region, where the channel’s conductivity is nearly constant despite increases in the drain-source voltage.

Transfer Characteristics

The transfer characteristics of a JFET describe the relationship between the drain current (I_D) and the gate-source voltage (V_GS) under a constant drain-source voltage. This curve is typically quadratic in the saturation region and is crucial for understanding and predicting the device’s performance in amplification and switching applications. It shows how varying the gate voltage controls the current flowing through the channel.

Pinch-off Voltage (V_P)

The pinch-off voltage is the specific gate-source voltage at which the conductive channel in a JFET is completely depleted, and the drain current is effectively minimized. It is a critical parameter as it defines the transition from the linear region to the saturation region of the transfer characteristics. A higher magnitude of V_P indicates a larger voltage is needed to significantly reduce the channel’s conductivity.

Saturation Drain Current (I_DSS)

I_DSS is the drain current of the JFET when the gate-source voltage is zero. It represents the maximum current that the device can conduct in the absence of any reverse bias on the gate. This parameter is fundamental in sizing and biasing the JFET in circuits, as it sets the upper limit for the current and affects the overall transfer characteristic curve.
