A pair of long, rigid metal rods, each of length $L$ , lie parallel to each other on a perfectly smooth table. Their ends are connected by identical, very light conducting springs of force constant $k$ (Figure 20.79$)$ and negligible unstretched length. If a current $I$ runs through this circuit, the springs will stretch. At what separation will stretch. At remain at rest? Assume that $k$ is large enough so that the separation of the rods will be much less than $L .$

Get the answer to your homework problem.

Try Numerade free for 7 days

Like

Report

Hence, the separation at which rods remains at rest is $\left(\sqrt{\frac{\mu_{0} L}{4 \pi k}}\right) I$

Physics 101 Mechanics

Physics 102 Electricity and Magnetism

Chapter 20

Magnetic Field and Magnetic Force

Motion Along a Straight Line

Motion in 2d or 3d

Electric Charge and Electric Field

Gauss's Law

Current, Resistance, and Electromotive Force

Direct-Current Circuits

Magnetic Field and Magnetic Forces

Sources of Magnetic field

Electromagnetic Induction

Inductance

Cornell University

Rutgers, The State University of New Jersey

Simon Fraser University

University of Winnipeg

Lectures

18:38

In physics, electric flux is a measure of the quantity of electric charge passing through a surface. It is used in the study of electromagnetic radiation. The SI unit of electric flux is the weber (symbol: Wb). The electric flux through a surface is calculated by dividing the electric charge passing through the surface by the area of the surface, and multiplying by the permittivity of free space (the permittivity of vacuum is used in the case of a vacuum). The electric flux through a closed surface is zero, by Gauss's law.

04:28

A magnetic field is a mathematical description of the magnetic influence of electric currents and magnetic materials. The magnetic field at any given point is specified by both a direction and a magnitude (or strength); as such it is a vector field. The term is used for two distinct but closely related fields denoted by the symbols B and H. The term "magnetic field" is often used to refer to the B field. In a vacuum, B and H are the same, whereas in a material medium, B is a component of H. In the latter case, H is the "magnetic field strength", and B is the "magnetic flux".

01:27

A pair of long, rigid meta…

12:56

19:43

03:03

Two parallel rods are each…

08:36

02:11

A straight rod of mass $m$…

02:41

A conducting rod of mass $…

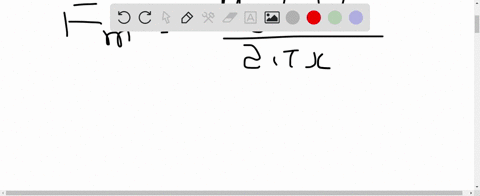

so we can say that on each wire the force of the spring must be equal to the force of the magnetic field. So if we were to say this, that means that we also have to take note that there are two spring forces on each wire. So this is where we use hooks law. So we can say two hooks law with which equals K Times X would be equal to the force of the spring. Two times the force of a spring would be equal to mu. I squared times l divided by two pi X. Now we should find X so X is going to be equal to mu, not times I squared times l divided by a to pi k times 1/2. So this would be how far you need to stretch the spring such that the magnetic field and the force of the spring cancel out on each wire. And again, this would be mu not the magnetic permeability in a vacuum or the primitive ity of three space times. The current squared times the length divided by two pi times K. Here K is the spring constant. That is the end of the solution. Thank you for watching
