A parallel-plate capacitor has square plates that are 8.00 cm on each side and 3.80 mm apart. Th

step 1 Alright, so in this problem, we have a setup like this. So this is a parallel plate capacitor. A

A parallel-plate capacitor has square plates that are 8.00...

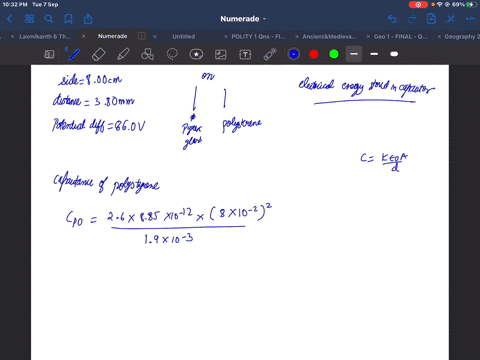

A parallel-plate capacitor has square plates that are 8.00 $\mathrm{cm}$ on each side and 3.80 $\mathrm{mm}$ apart. The space between the plates is completely filled with two square slabs of dielectric, each 8.00 $\mathrm{cm}$ on a side and 1.90 $\mathrm{mm}$ thick. One slab is pyrex glass and the other is polystyrene. If the potential difference between the plates is $86.0 \mathrm{V},$ how much electrical energy is stored in the capacitor?

Key Concepts

Parallel-Plate Capacitors

A parallel-plate capacitor consists of two conductive plates separated by an insulating material (or vacuum). The capacitance of such a capacitor is determined by the area of the plates and the distance between them, following the relation C = ?A/d, where ? is the permittivity of the insulator. This type of capacitor is fundamental in understanding energy storage and electric field distribution and is widely used in various electronic applications.

Dielectric Materials

Dielectric materials are insulating substances that, when placed between the plates of a capacitor, increase its capacitance by reducing the effective electric field. They are characterized by a property called the dielectric constant (or relative permittivity), which quantifies how much the material can be polarized by an electric field compared to a vacuum. The incorporation of dielectrics allows more charge to be stored for the same applied voltage, enhancing the capacitor's performance.

Composite Dielectric Systems

Composite dielectric systems involve using more than one type of dielectric material in the space between the capacitor plates. When different layers of dielectrics are used, the overall capacitance must be determined by considering the arrangement of the layers—whether they are in series or parallel—and applying the appropriate combination rules. This approach is critical when designing capacitors with tailored properties by combining materials with different dielectric constants.

Energy Storage in Capacitors

The energy stored in a capacitor is given by the formula U = ½ CV², where U is the energy, C is the capacitance, and V is the voltage difference across the capacitor. This relationship highlights how the stored energy depends directly on both the capacitance and the square of the voltage, making it a central concept in the analysis of energy storage in electrostatic systems.

Transcript
