A parallel-plate capacitor has square plates that have edge...

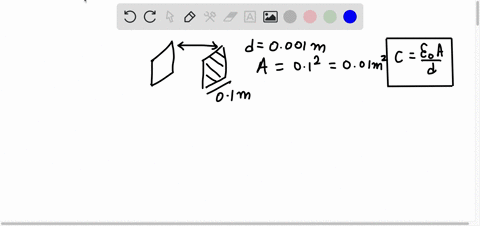

A parallel-plate capacitor has square plates that have edge lengths equal to $1.00 \times 102 \mathrm{~cm} 1.00 \times 10^{2} \mathrm{~cm}$ and are separated by $1.00 \mathrm{~mm}$. What is the capacitance of this device? Example $17-7$

Key Concepts

Unit Conversion

Performing accurate calculations in physics often requires converting measurements into appropriate SI units. This is crucial when applying standard formulas, as it ensures consistency and correctness in computations, particularly for parameters like area and distance in capacitor problems.

Capacitance

Capacitance is the quantity that represents a capacitor's ability to store electrical charge per unit voltage. Defined as the ratio of the electric charge on one conductor to the potential difference between the conductors, it is measured in farads (F) and is a fundamental property in circuit design and analysis.

Parallel-Plate Capacitor

A parallel-plate capacitor is a basic electrical component consisting of two conductive plates separated by an insulating material. It stores energy in the electric field that forms in the space between the plates when a voltage is applied. Its design makes it a useful model for understanding principles of capacitance and electric fields.

Area and Separation Relationship

The capacitance of a parallel-plate capacitor is determined by the physical dimensions of the capacitor, specifically the area of the plates and the distance between them. The capacitance increases with a larger plate area and decreases with a greater separation, reflecting the direct dependency on the area and inverse dependency on the distance between the plates.
