A parallel-plate capacitor that has a plate separation of 0.50 cm is filled halfway with a slab

step 1 For this problem on the topic of electrostatics, we're told that a parallel plate capacitor has

A parallel-plate capacitor that has a plate separation of...

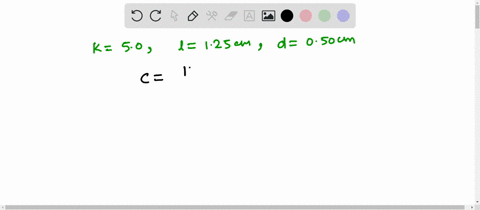

A parallel-plate capacitor that has a plate separation of $0.50 \mathrm{~cm}$ is filled halfway with a slab of dielectric material ( ? is $5.0$ ) (Figure 17-34). If the plates are $1.25 \mathrm{~cm}$ by $1.25 \mathrm{~cm}$ in area, what is the capacitance of this capacitor? Example $17-12$

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Parallel-Plate Capacitor

A parallel-plate capacitor consists of two conductive plates separated by an insulating material, where the capacitance depends directly on the plate area and inversely on the separation between them. This basic capacitor geometry is fundamental to understanding energy storage in electric fields and forms the basis for many real-world applications.

Dielectric Material

Dielectric materials are insulators that, when inserted between the plates of a capacitor, reduce the effective electric field and thereby increase the capacitor’s overall capacitance. The effectiveness of a dielectric in enhancing capacitance is quantified by its dielectric constant, which is a measure of the material's ability to be polarized by an external electric field.

Composite Dielectric and Series Combination of Capacitors

When a capacitor is partially filled with a dielectric, the system can be modeled as two capacitors in series – one with the dielectric and one without (vacuum or air). This approach involves calculating the capacitance of each section separately based on its geometry and dielectric properties, and then combining them using the rules for series combinations. This method is essential for analyzing capacitors with non-uniform dielectric configurations.
