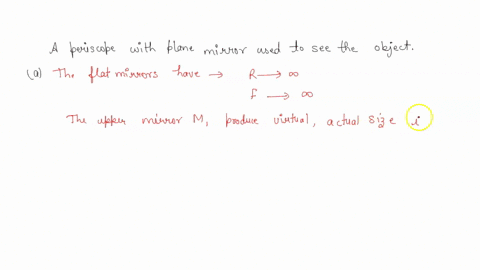

A periscope consists of two flat mirrors and is used for viewing objects when an obstacle impedes direct viewing. Suppose that Curious George is looking through a periscope at the Man in the Yellow Hat, whose hat is at $d_{\mathrm{o}}=3.00 \mathrm{~m}$ from the upper mirror, and suppose that the two flat mirrors are separated by a distance $L=0.400 \mathrm{~m}$. What is the distance $D$ of the final image of the yellow hat from the lower mirror?

Key Concepts

Geometric Ray Tracing in Optical Systems

This concept involves tracing the path of light rays through an optical system like a periscope. By applying geometric relationships and the law of reflection, one can calculate the position and orientation of images formed by multiple mirrors. This analysis is essential for understanding how the arrangement and spacing of mirrors affect the location of the final image relative to the observer.

Law of Reflection

The law of reflection states that the angle at which a light ray strikes a reflective surface (angle of incidence) is equal to the angle at which it leaves (angle of reflection). This fundamental principle ensures that the light path is precisely controlled as it encounters each mirror in a periscope, thereby determining the accurate positioning of the final image.

Plane Mirror Reflection

This concept explains that flat mirrors produce images by reflecting light such that the angle of incidence equals the angle of reflection. The virtual image appears to be the same distance behind the mirror as the object is in front, a principle crucial to understanding how periscopes redirect the view from one mirror to the other.

Virtual Image Formation

A virtual image is formed when the reflected light rays appear to diverge from a point behind the mirror, even though they do not actually converge there. In periscopes, each mirror creates a virtual image, and the final perceived image results from the combination of these virtual images produced by the dual reflections.
