A pipe flows 1.5 kg / s of a mixture with mass fractions of 40 % CO2 and 60 % N2 at 400 kPa and

step 1 Hi everybody, so this question is asking us. Heating tape is wrapped around a section of pipe an

A pipe flows 1.5 kg / s of a mixture with mass fractions of...

A pipe flows $1.5 \mathrm{kg} / \mathrm{s}$ of a mixture with mass fractions of $40 \% \mathrm{CO}_{2}$ and $60 \% \mathrm{N}_{2}$ at $400 \mathrm{kPa}$ and $300 \mathrm{K},$ shown in Fig. $\mathrm{P} 12.34 .$ Heating tape is wrapped around a section of pipe with insulation added, and $2 \mathrm{kW}$ of electrical power is heating the pipe flow. Find the mixture exit temperature.

Key Concepts

Specific Heat Capacity of Mixtures

This concept deals with the calculation of an effective specific heat capacity for gas mixtures by taking a weighted average of the specific heat capacities of the individual gases, using their mass fractions. It is crucial for determining how much the temperature of the mixture will change given a certain amount of energy input.

Steady-Flow Energy Equation

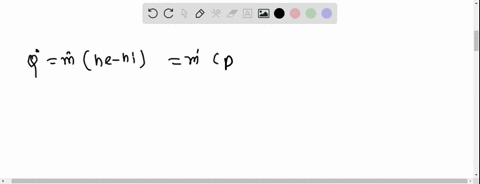

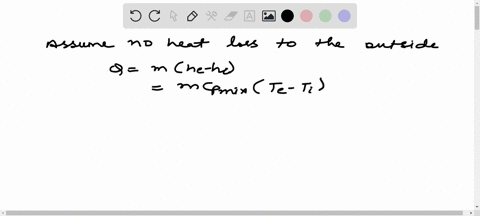

In steady flow processes, the energy added to the fluid (typically through heating) results in a temperature rise that can be related by the formula Q = m_dot * cp * ?T. This equation directly links the heat transfer rate, the fluid mass flow rate, and its specific heat capacity to find the change in temperature, making it fundamental for solving problems involving fluid heating.

Energy Balance in Open Systems

This principle involves applying the first law of thermodynamics to systems where mass flows in and out, such as pipes. It states that the net change in the total energy of the system is due to the heat added to it, work done by or on the system, and the energy carried in by the mass flux. In situations where there is no work and only heat transfer is considered, the increase in the fluid’s enthalpy is directly equated to the heat input.

Mass Flow Rate in Energy Calculations

The mass flow rate is a key parameter when applying energy balance in flowing systems. It quantifies the amount of mass passing through a section per unit time, and is essential in determining the total energy carried by the fluid. In heating calculations, it directly influences the temperature rise, as the heat added must be distributed over the mass flow rate of the fluid.

Transcript

Please give Ace some feedback
