A piston-cylinder device initially contains 8 ft^3 of helium gas at 40 psia and 70^∘ F. Helium i

step 1 Hi friends, part A, mass of helium using the gas equation will be P1B1 upon RT1, that is 40 into

A piston-cylinder device initially contains 8 ft^3 of helium...

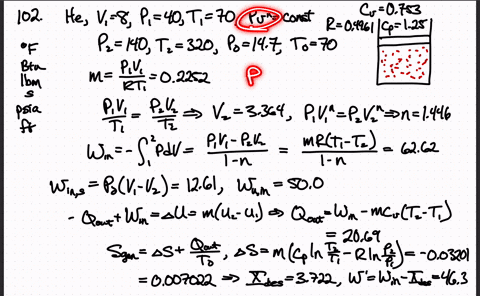

A piston-cylinder device initially contains $8 \mathrm{ft}^{3}$ of helium gas at 40 psia and $70^{\circ} \mathrm{F}$. Helium is now compressed in a polytropic process $\left(P U^{n}=\right.$ constant $)$ to 140 psia and $320^{\circ} \mathrm{F}$ Assuming the surroundings to be at 14.7 psia and $70^{\circ} \mathrm{F}$, determine $(a)$ the actual useful work consumed and $(b)$ the minimum useful work input needed for this process.

Key Concepts

Polytropic Process

A polytropic process is one in which the pressure and volume follow the relation PV^n = constant, where n (the polytropic exponent) characterizes the process. It encompasses various specific processes such as isothermal (n = 1) and adiabatic (n = specific heat ratio) processes as special cases. This concept is key in analyzing piston?cylinder devices since work is evaluated by integrating pressure with respect to volume changes along the specific path given by the polytropic relation.

Work in a Piston-Cylinder Device

In piston-cylinder systems, work is generally calculated by integrating pressure over a change in volume. The particular path taken during the process (in this case, a polytropic path) determines the integral form and the resulting work expression. This concept is central to understanding energy transfer during compression or expansion processes in closed systems.

Exergy Analysis

Exergy, or availability analysis, quantifies the maximum useful work that can be extracted from a system as it reaches equilibrium with its environment. This concept is crucial when determining the minimum work input needed, as it accounts for the irreversibilities in a real process and uses the environment’s state as a reference to assess energy quality rather than just quantity.

Ideal Gas Behavior

When a gas behaves ideally, its thermodynamic properties such as pressure, volume, and temperature relate through the ideal gas law. This assumption simplifies the analysis of processes in a piston-cylinder device by allowing the use of mathematical models and relations to describe the state changes and calculate work, making it a common and useful idealization in thermodynamic calculations.

Actual Versus Minimum (Reversible) Work

The actual work input represents the work consumed in a real, often irreversible, process while the minimum useful work input corresponds to the ideal, reversible process between the given initial and final states. This distinction is important for analyzing process efficiency, as the reversible work serves as a benchmark showing the lowest possible work requirement under ideal conditions.
