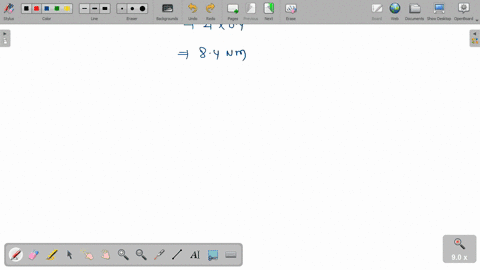

A plate in the shape of a parallelogram is acted upon by two couples. Determine ( $a$ ) the moment of the couple formed by the two $21-\mathrm{N}$ forces, (b) the perpendicular distance between the $12-\mathrm{N}$ forces if the resultant of the two couples is zero, (c) the value of $\alpha$ if the resultant couple is $1.8 \mathrm{~N} \cdot$ III clockwise and $d$ is 1.05 m .

Key Concepts

Moment of a Force

The moment of a force, also known as torque, is a measure of the tendency of a force to rotate an object about a specific point or axis. It is calculated by multiplying the magnitude of the force by the perpendicular distance from the line of action of the force to the pivot point. This concept is fundamental in solving equilibrium and rotational dynamics problems.

Force Couple

A force couple consists of two equal and opposite forces whose lines of action do not coincide. This arrangement produces a pure rotational effect (moment) without any resulting translational force. Understanding force couples is crucial in mechanics since they simplify the analysis of rotational actions in rigid bodies.

Lever Arm (Perpendicular Distance)

The lever arm is the shortest (perpendicular) distance from the pivot or reference line to the line along which the force acts. It plays a critical role in determining the moment generated by a force, as even a small force can produce a large moment if it acts at a long lever arm distance.

Resultant Couple

When multiple couples act on a body, the net effect can be described by a resultant couple. This resultant is found by summing the individual moments (taking into account their directions). In equilibrium conditions, if the resultant couple is zero, the system is in rotational balance, whereas a nonzero resultant couple produces a net rotation.

Trigonometric Relationships in Force Analysis

Trigonometry is often used to resolve forces and determine angles in problems involving inclined forces or geometry. Using trigonometric functions helps in finding unknown quantities such as angles or distances, and is essential when forces act at an angle to the principal directions.
