A point charge +2 Q is at the origin and a point charge -Q...

A point charge $+2 Q$ is at the origin and a point charge $-Q$ is located along the $x$ axis
at $x=d$ as in Figure $\mathrm{P} 23.17$ Find a symbolic expression for the net force on a third point charge $+Q \quad$ located along the $y$ axis at $y=d$.

Key Concepts

Coulomb's Law

Coulomb's Law describes how the electric force between two point charges depends on their magnitudes, the distance between them, and the permittivity of free space, typically expressed as F = k|q1*q2|/r^2. It forms the foundation for calculating forces in electrostatic problems.

Superposition Principle

The superposition principle states that the net force on a charge due to several other charges is the vector sum of the individual forces exerted by each charge. This allows the problem to be broken down into manageable parts that can later be combined.

Vector Addition

Since forces are vector quantities, their magnitudes and directions must both be taken into account. Vector addition involves decomposing forces into their components along chosen coordinate axes and summing these components to find the overall force.

Coordinate System Analysis

A properly defined coordinate system helps in locating charges and resolving forces into components, which simplifies the application of vector addition and ensures correct calculation of both magnitude and direction.

Transcript

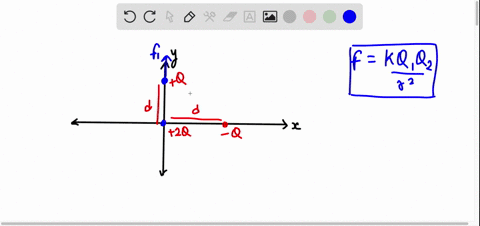

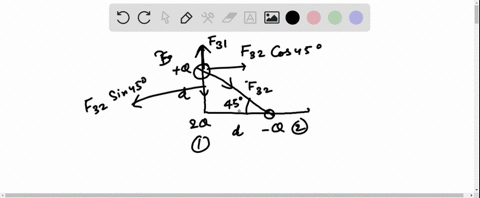

00:01 Okay, so this is the graph i drew for this question.

00:03 So this one between positive q and positive 2q is d.

00:09 And this is between positive q and negative q is d as well.

00:13 Therefore, the data angle here should be equal to 45 degrees because it's a right triangle with the same size.

00:19 And the distance between positive q and negative q should be square root 2d, since square plus d squared is square root 2d.

00:26 So therefore, there are two forces act down the positive q, which is one is the repulsive force from positive two cube and one is the attractive force from negative cube.

00:35 So we can decompose the blue arrow here, which is the attractive force from the negative cube.

00:43 Therefore, we have something like this.

00:46 Okay.

00:47 Let's say the vertical forces, call it j and this one is i.

00:57 Okay, so this is the j components or the y components of the force from the negative.

01:04 Q on positive q and the horizontal force is the high component or you can say the x component of the force from xq to positive q.

01:14 Okay, so therefore we have f1 which is the force from positive q to 2q is equal to kq times 2k over d square and then there's a vector j here okay because the only force act on positive q from positive 2 q is the force along y -axis and there's no force from the positive q along the x -axis acting on the positive q.

01:37 So eventually we have 2 kq square over d square j.

01:42 And f2 is the attractive force from negative q to positive q, which is kqq over d square cosine 45 degree...
