A projectile fired from the point $(0,0)$ at an angle to the positive $x$ -axis has a trajectory given by $$ y=c x-\left(1+c^{2}\right)\left(\frac{g}{2}\right)\left(\frac{x}{v}\right)^{2} $$ where $x=$ horizontal distance in meters $y=$ height in meters $v=$ initial muzzle velocity in meters per second (m/sec) $g=$ acceleration due to gravity $=9.81$ meters per second squared $\left(\mathrm{m} / \mathrm{sec}^{2}\right)$ $c>0$ is a constant determined by the angle of elevation. A howitzer fires an artillery round with a muzzle velocity of $897 \mathrm{m} / \mathrm{sec}$. (a) If the round must clear a hill 200 meters high at a distance of 2000 meters in front of the howitzer, what $c$ values are permitted in the trajectory equation? (b) If the goal in part (a) is to hit a target on the ground 75 kilometers away, is it possible to do so? If so, for what values of $c ?$ If not, what is the maximum distance the round will travel?

A projectile fired from the point $(0,0)$ at an angle to the positive $x$ -axis has a trajectory given by
$$
y=c x-\left(1+c^{2}\right)\left(\frac{g}{2}\right)\left(\frac{x}{v}\right)^{2}
$$
where $x=$ horizontal distance in meters $y=$ height in meters $v=$ initial muzzle velocity in meters per second (m/sec) $g=$ acceleration due to gravity $=9.81$ meters per second squared $\left(\mathrm{m} / \mathrm{sec}^{2}\right)$
$c>0$ is a constant determined by the angle of elevation.
A howitzer fires an artillery round with a muzzle velocity of $897 \mathrm{m} / \mathrm{sec}$.

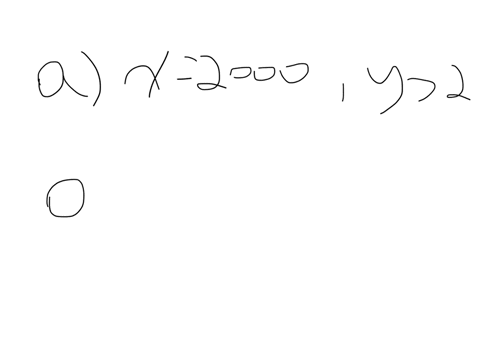

(a) If the round must clear a hill 200 meters high at a distance of 2000 meters in front of the howitzer, what $c$ values are permitted in the trajectory equation?
(b) If the goal in part (a) is to hit a target on the ground 75 kilometers away, is it possible to do so? If so, for what values of $c ?$ If not, what is the maximum distance the round will travel?

Key Concepts

Maximum Range in Projectile Motion

The range of a projectile is the horizontal distance it travels before returning to ground level. The maximum range is determined by optimizing the launch angle and taking into account the effects of gravity and initial velocity. In applications where constraints are imposed, determining the maximum possible range involves solving for the conditions under which the projectile can travel the farthest without violating any imposed limits.

Initial Velocity

Initial velocity is the starting speed at which the projectile is fired. It is a critical factor in projectile motion, as it influences the range and maximum height achieved by the projectile. The interplay between initial velocity, launch angle, and gravity defines the overall trajectory.

Constraints in Projectile Trajectories

When designing a projectile's trajectory under practical conditions—such as clearing an obstacle or hitting a specific target—the projectile must satisfy certain conditions at predetermined distances. This involves setting up equations or inequalities based on the trajectory equation to ensure the projectile reaches required heights or distances at the correct points along its path.

Trajectory Equation for Projectiles

The trajectory of a projectile is typically represented by a quadratic equation in x, reflecting a parabolic path. The specific form of the equation combines a linear term and a quadratic term, which account for the initial direction of the projectile and the curvature induced by gravity, respectively.

Projectile Motion

Projectile motion describes the two?dimensional motion of an object that is launched into the air and moves under the influence of gravity alone, with no propulsion. This results in a path that is parabolic, as the horizontal component of motion remains constant while the vertical component is uniformly accelerated due to gravity.

Launch Angle as Parameter c

In the provided trajectory equation, the constant c corresponds to the tangent of the angle of elevation. It determines the initial slope of the projectile's path, thereby directly affecting both the vertical height reached and the horizontal distance traveled.
