A pulley system shown in Figure P 8.14 will allow you to...

A pulley system shown in Figure $P 8.14$ will allow you to lift heavy objects in the machine shop by exerting a relatively small force. (a) Construct a force diagram for each pulley. (b) Use the equations of equilibrium and the force diagrams to determine $T_{1}, T_{2}, T_{3},$ and $T_{4}$.

A pulley system shown in Figure $P 8.14$ will allow you to lift heavy objects in the machine shop by exerting a relatively small force.

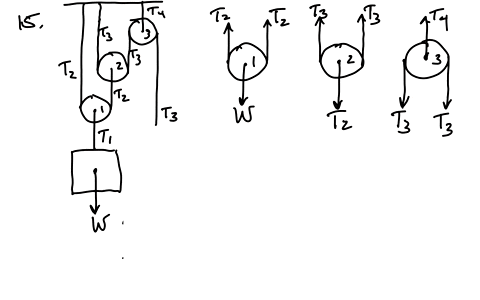

(a) Construct a force diagram for each pulley.
(b) Use the equations of equilibrium and the force diagrams to determine $T_{1}, T_{2}, T_{3},$ and $T_{4}$.

Key Concepts

Pulley Mechanics

Pulley mechanics involves understanding how pulleys change the direction and magnitude of forces applied through ropes. Key principles include the fact that frictionless pulleys maintain equal tension on either side and can provide a mechanical advantage, thereby allowing a smaller force to lift a heavier load.

Tension

Tension is the force conducted along a rope, cable, or chain that results when it is pulled tight by forces acting at its ends. In pulley problems, understanding how tension distributes across different segments of the rope, especially when it passes over pulleys, is key for determining the forces required to lift loads.

Mechanical Advantage

Mechanical advantage is a measure of how much a machine multiplies an input force to accomplish work. In pulley systems, the configuration of the ropes and pulleys provides a mechanical advantage that enables lifting heavy objects with a relatively small force; this concept is central to analyzing and designing such systems.

Free-Body Diagrams

A free-body diagram is a graphical representation of an object isolated from its surroundings, showing all the external forces acting upon it. In the context of pulley systems, drawing a free-body diagram of each pulley helps one visualize the forces such as tensions and weights, which is essential for setting up the equilibrium equations.

Equilibrium Equations

Equilibrium equations are based on the principle that, for a system at rest or moving with constant velocity, the sum of the forces (and moments, if applicable) acting on the object must be zero. In static pulley problems, applying these equations allows one to relate the various tensions in the ropes by ensuring that the net force on each pulley is zero.
