A quantity of air undergoes a thermodynamic cycle consisting of three internally reversible processes in series. Process 1-2: isothermal expansion from $6.25$ to $1.0$ bar Process 2-3: adiabatic compression to $550 \mathrm{~K}, 6.25$ bar Process 3-1: constant-pressure compression Employing the ideal gas model, (a) sketch the cycle on $p-v$ and $T-s$ coordinates. (b) determine $T_{1}$, in $\mathrm{K}$ (c) If the cycle is a power cycle, determine its thermal efficiency. If the cycle is a refrigeration cycle, determine its coefficient of performance.

A quantity of air undergoes a thermodynamic cycle consisting of three internally reversible processes in series.
Process 1-2: isothermal expansion from $6.25$ to $1.0$ bar Process 2-3: adiabatic compression to $550 \mathrm{~K}, 6.25$ bar
Process 3-1: constant-pressure compression
Employing the ideal gas model,

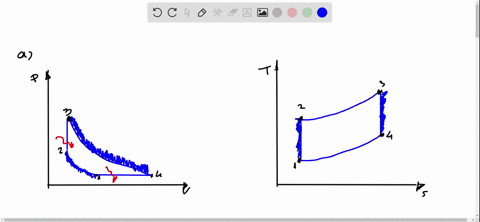

(a) sketch the cycle on $p-v$ and $T-s$ coordinates.
(b) determine $T_{1}$, in $\mathrm{K}$
(c) If the cycle is a power cycle, determine its thermal efficiency. If the cycle is a refrigeration cycle, determine its coefficient of performance.

Key Concepts

Thermal Efficiency

Thermal efficiency is a measure of how well a power cycle converts heat input into useful work output. It is defined as the ratio of work done by the system to the heat absorbed during the cycle. Understanding thermal efficiency is critical in evaluating and comparing the performance of various thermodynamic cycles used in power generation.

Ideal Gas Model

The ideal gas model is a simplifying assumption used in thermodynamics where a gas is assumed to follow the ideal gas law (PV = nRT) without experiencing intermolecular attractions or the volume of the molecules themselves. This model facilitates the theoretical analysis of processes and cycles, allowing straightforward application of various thermodynamic relations in problems involving work, heat transfer, efficiency, and other cycle characteristics.

Temperature-Entropy (T-s) Diagram

The temperature-entropy diagram plots temperature versus entropy and is particularly useful for visualizing heat transfer during a process. In internally reversible processes, the entropy change is directly related to heat transfer, and the area under a process curve on the T-s diagram corresponds to the heat transferred. This diagram helps in understanding the thermodynamic efficiency and irreversibilities within a cycle.

Coefficient of Performance

The coefficient of performance (COP) is a metric used to evaluate the efficiency of refrigeration cycles and heat pumps. It is defined as the ratio of the desired effect (cooling or heating) to the work input required to achieve that effect. The COP helps in assessing the practical effectiveness of refrigeration cycles compared to power cycles where thermal efficiency is more commonly used.

Constant-Pressure Process

A constant-pressure process, also known as an isobaric process, is one in which the pressure remains fixed while the volume and temperature of the system change. In such processes with an ideal gas, heat added or removed leads to a direct change in temperature and volume, as dictated by the ideal gas law. This is important when evaluating work interactions and energy transfers in cycles featuring portions where pressure is held constant.

Adiabatic Process

An adiabatic process is characterized by the absence of heat transfer between the system and its surroundings. For an ideal gas undergoing an adiabatic process, any change in its internal energy is solely due to the work done on or by the gas. This leads to a specific relationship between pressure, volume, and temperature, and is essential in the analysis of rapid compressions or expansions where heat exchange is negligible.

Isothermal Process

An isothermal process is one in which the temperature of the system remains constant throughout the process. For an ideal gas undergoing an isothermal expansion or compression, the internal energy remains constant and the work done is exactly balanced by the heat exchange with the surroundings. This concept is foundational in understanding how energy is transferred without a change in temperature, which is critical when analyzing cycles that include constant temperature legs.

Pressure-Volume (p-v) Diagram

The pressure-volume diagram is a graphical representation of the changes in pressure and volume in a thermodynamic process or cycle. Each process is represented as a distinct curve on the diagram, and the area enclosed by the curve in a cycle corresponds to the net work done by the system. Understanding this diagram is crucial for visualizing the steps of a cycle and analyzing work interactions.
