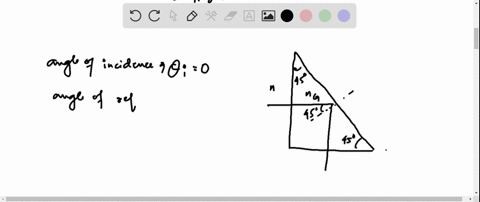

A ray of light is incident normally from air onto a glass $(n=1.50)$ prism as shown in the figure with Problem 26. (a) Draw all of the rays that emerge from the prism and give angles to represent their directions. (b) Repeat part (a) with the prism immersed in water $(n=1.33)$. (c) Repeat part (a) with the prism immersed in a sugar solution $(n=1.50)$.

A ray of light is incident normally from air onto a glass $(n=1.50)$ prism as shown in the figure with Problem
26. (a) Draw all of the rays that emerge from the prism and give angles to represent their directions. (b) Repeat part (a) with the prism immersed in water $(n=1.33)$.
(c) Repeat part (a) with the prism immersed in a sugar solution $(n=1.50)$.

Key Concepts

Snell's Law

Snell's Law governs the refraction of light at an interface between two media with different refractive indices. It states that the product of the refractive index and the sine of the angle of incidence is constant across the interface, which means that the light ray bends towards the normal when entering a medium with a higher refractive index and away from the normal when entering a medium with a lower refractive index.

Index of Refraction

The index of refraction is a measure of how much the speed of light is reduced inside a medium compared to its speed in a vacuum. This property is crucial in determining the bending of light rays at interfaces and depends on the material’s optical density, affecting the critical angles and the degree of refraction observed.

Normal Incidence

Normal incidence refers to the situation where a light ray strikes a surface perpendicularly. In this case, the angle of incidence is zero, and according to Snell’s Law, there is no bending of the ray upon entering the new medium; however, once inside a structured object like a prism, subsequent encounters with non-parallel surfaces can lead to refraction and reflection.

Prism Geometry and Ray Tracing

Prism geometry and ray tracing involve analyzing the path of light as it enters, propagates through, and exits a prism. The internal angles of the prism and the orientation of its surfaces determine how the light is refracted at each interface, meaning that precise drawing of the rays requires applying geometrical optics principles together with Snell’s Law to account for the direction changes at each boundary.

Medium Immersion Effects

Immersion of a prism in different media alters the refractive index contrast at its external surfaces, which can significantly change the angles at which light rays emerge. When the surrounding medium's refractive index approaches that of the prism, refraction at the outer surfaces is minimized, leading to different ray paths compared to when the prism is in air, thereby demonstrating the sensitivity of ray direction to the relative indices of the involved media.
