A ray of light is incident on a plane surface separating two...

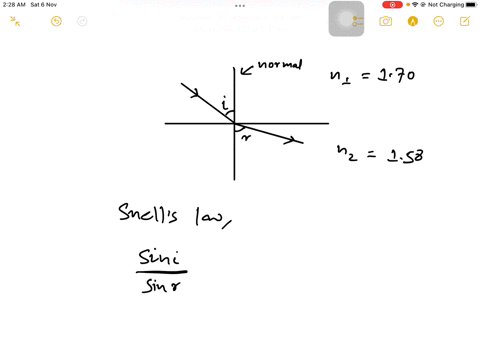

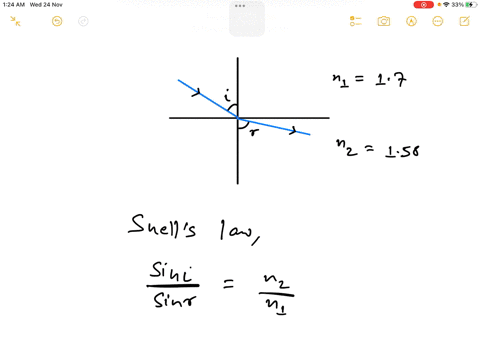

A ray of light is incident on a plane surface separating two sheets of glass with refractive indexes 1.70 and 1.58. The angle of incidence is 62.0$^\circ$, and the ray originates in the glass with $n$ = 1.70. Compute the angle of refraction.

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Angle of Incidence and Refraction

These are the angles formed between the light ray and the normal (a perpendicular line) at the interface of two media. The angle of incidence is measured in the initial medium, while the angle of refraction is measured in the second medium, and they are related through Snell's Law.

Plane Surface Interface

The boundary between two homogeneous media where the change in optical density occurs. At such an interface, the behavior of light is governed by laws such as Snell's Law, which predicts the bending of the light ray when moving from one medium to another.

Snell's Law

A fundamental principle in optics that relates the angles of incidence and refraction to the refractive indices of the two media. It is expressed as n?sin?? = n?sin??, where n? and n? are the refractive indices of the first and second media, respectively, and ?? and ?? are the angles of incidence and refraction.

Refractive Index

A dimensionless number that indicates how much light slows down when passing through a material compared to its speed in a vacuum. The variation in refractive indices between different media causes the bending of light rays at the interface.
