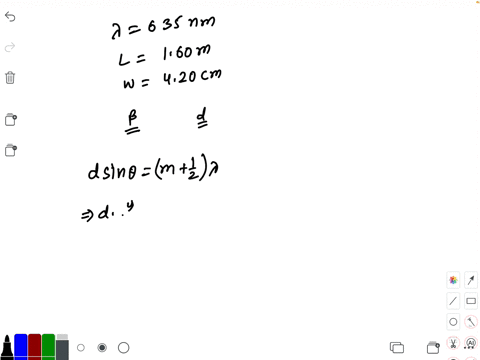

A red laser pointer shines light with a wavelength of $635 \mathrm{nm}$ on a double slit, producing a diffraction pattern on a screen that is $1.60 \mathrm{~m}$ behind the double slit. The central maximum of the diffraction pattern has a width of $4.20 \mathrm{~cm}$, and the fourth bright spot is missing on both sides. What is the width of the individual slits, and what is the separation between them?

Key Concepts

Diffraction Geometry and Small Angle Approximation

The geometry of a diffraction pattern relates the angles at which light is deflected to the positions of the fringes on a distant screen. Under the small angle approximation, the sine or tangent of the angle can be approximated by the angle itself (in radians), allowing the translation between angular conditions derived from interference and diffraction formulas and the measurable linear positions on the screen. This approximation is crucial for practical analysis of diffraction patterns.

Missing Orders in Interference-Diffraction

Missing orders occur in a combined interference and diffraction experiment when the angles corresponding to the interference maxima coincide with the angles of the diffraction minima. In such cases, the expected bright fringes are effectively canceled out by the diffraction envelope, allowing for the determination of the slit width and separation by analyzing which orders are absent in the observed pattern.

Double-Slit Interference

Double-slit interference occurs when coherent light passes through two slits and the resulting waves overlap, producing a pattern of bright and dark fringes on a screen. Constructive interference, where the path difference between the light from the two slits equals an integer multiple of the wavelength, results in bright fringes. The spacing and number of these fringes depend on the separation between the slits and the wavelength of the light.

Single-Slit Diffraction

Single-slit diffraction describes the spreading of light as it passes through a narrow aperture, resulting in a characteristic pattern of a central maximum flanked by weaker secondary maxima and minima. The positions of the minima in this pattern are dictated by the condition that the slit width multiplied by the sine of the diffraction angle equals an integer multiple of the wavelength. This effect forms an envelope that modulates the finer interference pattern in experiments involving multiple slits.
