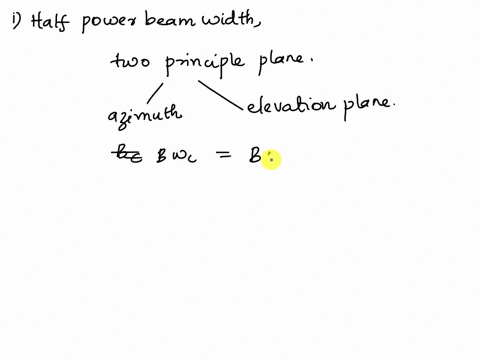

A reflector antenna used for a cellular base station backhaul radio link operates at 38 GHz , with a gain of 39 dB , a radiation efficiency of $90 \%$, and a diameter of $12^{\prime \prime}$. (a) Find the aperture efficiency of this antenna. (b) Find the half-power beamwidth, assuming the beamwidths are identical in the two principal planes.

Key Concepts

Reflector Antennas

Reflector antennas are devices that use a curved reflective surface, commonly a parabolic dish, to collect or transmit electromagnetic energy. The geometry of the reflector allows electromagnetic waves to be focused into a narrow beam, resulting in high gain and directivity, which are essential for applications requiring long-range or high data rate communication.

Antenna Gain

Antenna gain is a measure of how effectively an antenna directs or concentrates energy in a particular direction compared to an isotropic antenna that radiates equally in all directions. It is influenced by the physical size, design, and efficiency of the antenna, and is often expressed in decibels (dB), directly relating to the effective collection or transmission area of the antenna.

Aperture Efficiency

Aperture efficiency quantifies the proportion of the physical aperture area of an antenna that is effectively used for radiation or reception compared to the ideal case. It accounts for practical losses due to factors such as illumination taper, spillover, and phase errors, and is crucial for determining the actual performance of reflector antennas.

Radiation Efficiency

Radiation efficiency measures the fraction of power supplied to an antenna that is actually radiated as electromagnetic energy, as opposed to being lost as heat or reflected back. It encompasses all internal losses within the antenna system and is a key factor in assessing the overall effectiveness of the antenna.

Half-Power Beamwidth

The half-power beamwidth is the angular width of the main lobe of an antenna's radiation pattern measured between the points where the radiation intensity falls to half its peak value. This parameter provides an indication of the antenna's directivity and resolution, with narrower beamwidths generally corresponding to higher directivity.
