A resistor is constructed of a carbon rod that has a uniform...

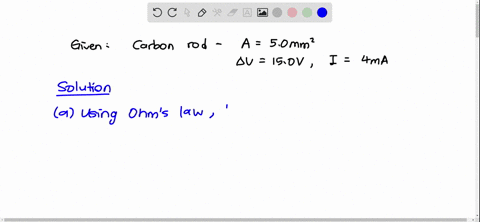

A resistor is constructed of a carbon rod that has a uniform cross-sectional area of $5.00 \mathrm{mm}^{2} .$ When a potential difference of $15.0 \mathrm{V}$ is applied across the ends of the rod, the rod carries a current of $4.00 \times 10^{-3} \mathrm{A}$. Find (a) the resistance of the rod and (b) the rod's length.

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Resistivity and the Geometric Dependence of Resistance

The resistance of a uniform material is not only determined by its intrinsic resistivity but also by its physical dimensions. The relationship R = ?L/A shows that the resistance increases with the length of the material and decreases with a larger cross-sectional area. Resistivity is a material-specific property that describes how strongly a material opposes the flow of electric current.

Unit Conversion in Electrical Measurements

Accurate calculations in electrical physics require the use of consistent units. For instance, converting areas from mm² to m² is crucial when applying formulas such as R = ?L/A, which are based on SI units. This step ensures that the results are dimensionally correct and comparable across different measurements.

Ohm's Law

Ohm's Law is a fundamental principle in electricity which states that the voltage across a conductor is directly proportional to the current flowing through it, with the constant of proportionality being the resistance (V = IR). This law allows one to calculate any one of voltage, current, or resistance when the other two quantities are known, making it essential for analyzing electrical circuits.
