A room contains air in which the speed of sound is 343 m / s . The walls of the room are made of

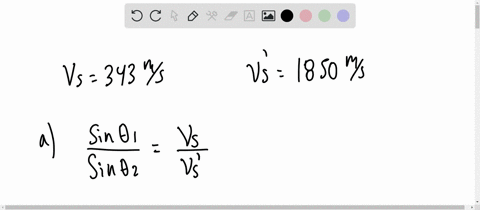

step 1 For a wave under refraction, sine theta 2, sine theta 2 divided by sine theta 1 is equal to V2 d

A room contains air in which the speed of sound is 343 m / s...

A room contains air in which the speed of sound is 343 $\mathrm{m} / \mathrm{s}$ . The walls of the room are made of concrete in which the speed of sound is 1850 $\mathrm{m} / \mathrm{s}$ . ( a) Find the critical angle for total internal reflection of sound at the concrete- air boundary. (b) In which medium must the sound be initially traveling if it is to undergo total internal reflection? (c) "A bare concrete wall is a highly efficient mirror for sound." Give evidence for or against this statement.

Key Concepts

Snell's Law

Snell's Law governs the refraction of waves at an interface between two media with different propagation speeds. It states that the ratio of the sine of the angle of incidence to the sine of the angle of refraction is equal to the ratio of the wave speeds in the two media. This principle is essential for determining the path a wave follows when it passes from one medium into another, and it provides the basis for calculating critical angles in total internal reflection.

Critical Angle

The critical angle is defined as the angle of incidence in the denser medium for which the refracted wave travels along the interface, making an angle of 90° with the normal. It is derived using Snell's Law by setting the angle of refraction to 90°, leading to the relationship sin(?_c) = v2/v1 (where v1 is the speed in the denser medium and v2 is the speed in the less dense medium). This concept is pivotal in understanding conditions under which total internal reflection occurs.

Total Internal Reflection

Total internal reflection occurs when a wave traveling in a medium with a higher speed hits a boundary with a medium characterized by a lower wave speed, and the angle of incidence exceeds the critical angle. When this condition is met, all the energy is reflected back into the original medium with no transmission into the second medium. This phenomenon is integral to applications that require confinement of wave energy, such as in fiber optics or sound control in acoustics.

Acoustic Wave Propagation in Different Media

In acoustics, different materials support different speeds of sound due to variations in density and elasticity. Understanding these differences is crucial when analyzing how sound interacts with interfaces between media, such as between air and concrete. The impedance mismatch and speed differences determine not only the path and refraction of sound waves but also the conditions under which phenomena like total internal reflection can occur. This knowledge is key for applications like sound insulation and architectural acoustics.
