Question
A schlieren photo of a bullet moving through air (see Video $\mathrm{V} 11.10$ at 14.7 psia and $68^{\circ} \mathrm{F}$ indicates a Mach cone angle of $28^{\circ} .$ How fast was the bullet moving in:(a) $\mathrm{m} / \mathrm{s}$(b) $\mathrm{ft} / \mathrm{s}$(c) mph?
Step 1
The Mach cone angle (θ) is related to the Mach number (M) by the equation: sin(θ) = 1 / M Given the Mach cone angle of 28°, we can find the Mach number: sin(28°) = 1 / M M = 1 / sin(28°) M ≈ 2.08 Show more…
Show all steps
Your feedback will help us improve your experience
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

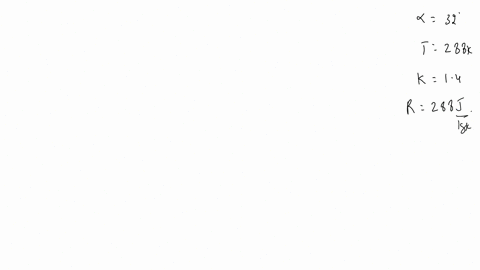

A photograph of a bullet shows a Mach angle of $32^{\circ}$ Determine the speed of the bullet for standard air.
A bullet is fired with a speed of 685 $\mathrm{m} / \mathrm{s} .$ Find the angle made by the shock cone with the line of motion of the bullet.

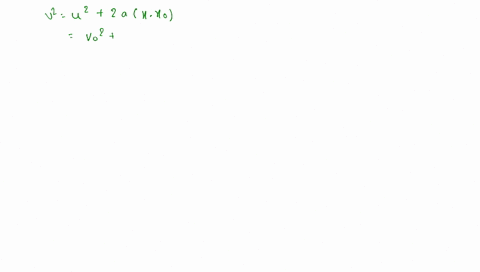

A bullet is fired upward with a speed $v_{0}$ from the edge of a cliff of height $h$ (Fig. $\mathrm{P} 3.22$ ). a. What is the speed of the bullet when it passes by the cliff on its way down? b. What is the speed of the bullet just before it strikes the ground? c. If the bullet is instead fired downward with the same initial speed $v_{0}$, what is its speed just before it strikes the ground? Express your answers in terms of $v_{0}, h$ and $g .$ Ignore air drag. Assume the bullet is fired straight up in (a) and (b) and straight down in (c).
