A scuba diver in a lake aims her underwater spotlight at the...

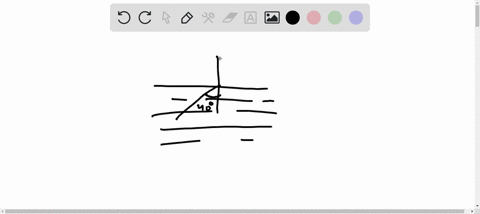

A scuba diver in a lake aims her underwater spotlight at the lake surface. (a) If the beam makes a $75^{\circ}$ angle of incidence with respect to a normal to the water surface, is it reflected, transmitted, or both? Find the angles of the reflected and transmitted beams (if they exist). (b) Repeat for a $25^{\circ}$ angle of incidence.

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Snell's Law

Snell's Law relates the angles of incidence and refraction to the refractive indices of the two media. It provides the formula n? sin(??) = n? sin(??), which is used to compute the transmitted (refracted) angle when light passes from one medium to another with different optical densities.

Law of Reflection

The Law of Reflection states that when a light beam strikes an interface, the angle of reflection is equal to the angle of incidence. This fundamental principle applies regardless of the media involved.

Total Internal Reflection

Total internal reflection occurs when light travels from a medium with a higher refractive index to one with a lower index and strikes the interface at an angle greater than a critical angle. Under these conditions, light is completely reflected back into the original medium, and no transmission occurs.

Critical Angle

The critical angle is the specific angle of incidence beyond which total internal reflection occurs when light moves from a denser medium to a less dense one. It can be calculated using the relation sin(?_c) = n?/n?, where n? and n? are the refractive indices of the original and second media respectively.
