A series ac circuit contains a 250Ωresistor, a 15 mH inductor, a 3.5μcapacitor, and an ac power

A series ac circuit contains a 250Ωresistor, a 15 mH...

Key Concepts

Reactive Components (Inductive and Capacitive Reactance) in AC Circuits

Reactive components, namely inductors and capacitors, introduce reactance to the circuit, which causes the current and voltage to be out of phase. Inductive reactance contributes a positive imaginary part, causing the current to lag behind the voltage, whereas capacitive reactance contributes a negative imaginary part, leading the current to advance. Their combined effect can result in a net reactive impedance which influences the overall impedance and power factor of the circuit.

Average (Real) Power in AC Circuits

Average power, also known as real power, represents the portion of power that is actually consumed or used to perform work in the circuit over one complete cycle. In AC circuits, this is calculated by considering both the magnitude of the current and voltage and the cosine of the phase angle (power factor). Typically, only resistive components dissipate real power, whereas reactive elements, like inductors and capacitors, store and release energy without net consumption.

Series RLC Circuit Analysis

Series RLC circuit analysis involves evaluating a circuit that contains a resistor (R), inductor (L), and capacitor (C) connected in series. This analysis requires calculating the net impedance by considering both the resistive and reactive (inductive and capacitive) parts, determining the phase angle and power factor, and understanding how energy is managed within the circuit. The behavior of such circuits is crucial in many applications, including filtering, tuning, and signal processing, as they can selectively amplify or attenuate different frequency components.

Impedance in AC Circuits

Impedance is the total opposition a circuit presents to the flow of alternating current (AC) and is a combination of resistance and reactance. In a series AC circuit, resistors add directly, while the reactances of inductors and capacitors add vectorially (taking into account their phase differences). This combined measure, expressed as a complex number, determines the phase relationship between voltage and current and is essential for analyzing circuit behavior.

Power Factor

The power factor is a measure of how effectively the circuit converts input electrical power into useful work and is defined as the cosine of the phase angle between the applied voltage and the resulting current. A power factor close to 1 indicates efficient utilization of power with minimal reactive losses, while a lower power factor signifies that significant energy is stored and later returned to the system by reactive components.

Transcript

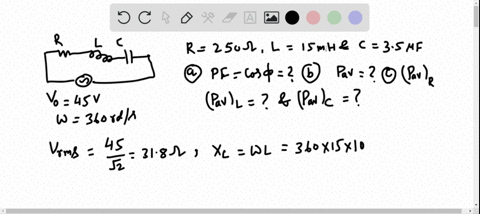

00:01 Before we do anything, let's get the voltage rms from the voltage amplitude.

00:05 So the voltage rms is equal to the voltage amplitude over the square of 2.

00:10 And plugging in the value here, which is 45 volts, we get a voltage rms of 31 .8 volts.

00:16 And we'll set that aside for now.

00:20 So the power factor that they're referring to in part a is equal to cosine of phi, where phi is the phase angle, and the phase angle is given by, well, the tangent of the phase angle, i should say, is given by the reactance of the inductor, minus the reactance of the capacitor over the resistance.

00:43 And so let's figure out what these quantities are.

00:46 The reactance of the inductor is equal to omega times l, and plugging in the values that we're given, 360 radiance per second.

00:57 And for l, we have 15 times 10 to the minus third henry's.

01:02 And so this is equal to 5 .4 oms.

01:06 And then for xc, we know that.

01:07 Know it to be 1 over omega c.

01:10 And so this is equal to 1 over 360 radiance per second times the capacitance, which is 3 .5 times 10 to the minus 6 ferrets.

01:25 And so this gives 794 oms.

01:30 And so now we can plug these two things along with the resistance that they give us to figure out what this phi is.

01:39 We have to take an inverse tangent at the end.

01:42 But if you do that, you get that phi is negative.

01:44 72 .4 degrees.

01:47 And so now we can take the cosine of this to figure out what the power factor is.

01:52 Since this here is the power factor.

01:57 And we get that the power factor when we take the cosine is equal to 0 .302.

02:09 In part b, we're going to need to calculate the impedance in order to calculate the power going through the circuit here.

02:17 And so let's go ahead and calculate that.

02:19 I get z is equal to the square root of r squared.

02:25 Plus xl minus xc...
