A series R L circuit with L=3.00 H and a series R C circuit with C=3.00 μF have equal time const

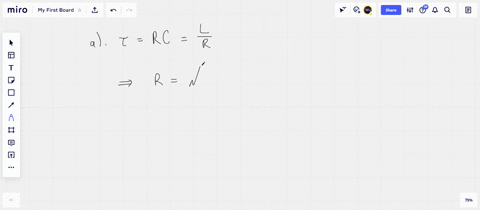

step 1 we can use the expression that Tor, the time constant, is equal to R times C. The resistance tim

A series R L circuit with L=3.00 H and a series R C circuit...

A series $R L$ circuit with $L=3.00 \mathrm{H}$ and a series $R C$ circuit with $C=3.00 \mu \mathrm{F}$ have equal time constants. If the two circuits contain the same resistance $R,$ (a) what is the value of $R ?(\text { b) What is the time constant? }$

Key Concepts

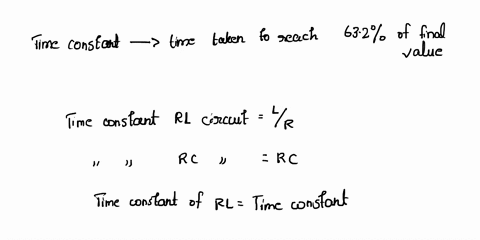

Time Constant

The time constant in electrical circuits is a measure of the response speed of the circuit to changes in voltage or current. In circuits with energy storage elements like capacitors and inductors, the time constant quantifies how quickly a circuit charges or discharges, or how fast current builds up or decays after a sudden change. It is critical for analyzing transient responses and for designing circuits with desired timing characteristics.

Series RL Circuit

A series RL circuit consists of a resistor and an inductor connected in series. The time constant in an RL circuit is defined as the inductance divided by the resistance (? = L/R). This parameter determines the rate at which the current in the circuit increases or decreases when the circuit is subject to a sudden change, such as when a switch is closed or opened, and it reflects the inductor's inherent property of opposing changes in current.

Series RC Circuit

A series RC circuit comprises a resistor and a capacitor connected in series. The time constant for an RC circuit is given by the product of the resistance and the capacitance (? = R·C). This time constant indicates how quickly the capacitor charges or discharges through the resistor when a voltage is applied or removed, and is essential in predicting the exponential behavior of the voltage across the capacitor over time.

Equating Time Constants in Different Circuits

When two circuits with different configurations, such as a series RL and a series RC circuit, are set to have equal time constants, their governing expressions (L/R for the RL circuit and R·C for the RC circuit) can be equated. This process allows one to solve for unknown parameters, such as the resistance, ensuring that both circuits respond similarly in time despite their differing components and energy storage mechanisms.
