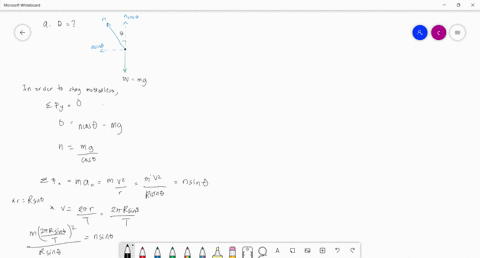

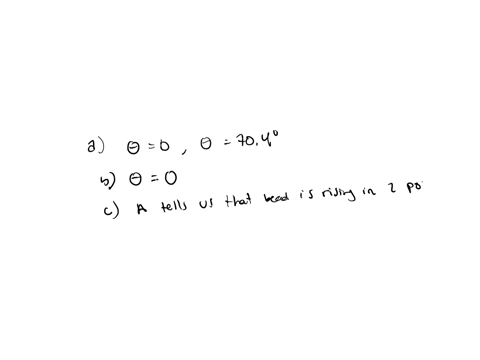

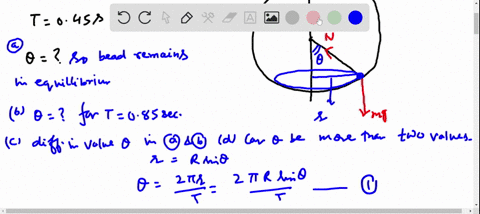

A single bead can slide with negligible friction on a stiff wire that has been bent into a circular loop of radius $15.0 \mathrm{cm}$ as shown in Figure $\mathrm{P} 5.59 .$ The circle is always in a vertical plane and rotates steadily about its vertical diameter with a period of 0.450 s. The position of the bead is described by the angle $\theta$ that the radial line, from the center of the loop to the bead, makes with the vertical. (a) At what angle up from the bottom of the circle can the bead stay motionless relative to the turning circle? (b) What If? Repeat the problem, this time taking the period of the circle's rotation as 0.850 s. (c) Describe how the solution to part (b) is different from the solution to part (a). (d) For any period or loop size, is there always an angle at which the bead can stand still relative to the loop? (e) Are there ever more than two angles? Arnold Arons suggested the idea for this problem.

A single bead can slide with negligible friction on a stiff wire that has been bent into a circular loop of radius $15.0 \mathrm{cm}$ as shown in Figure $\mathrm{P} 5.59 .$ The circle is always in a vertical plane and rotates steadily about its vertical diameter with a period of 0.450 s. The position of the bead is described by the angle $\theta$ that the radial line, from the center of the loop to the bead, makes with the vertical. (a) At what angle up from the bottom of the circle can the bead stay motionless relative to the turning circle?
(b) What If? Repeat the problem, this time taking the period of the circle's rotation as 0.850 s. (c) Describe how the solution to part (b) is different from the solution to part (a). (d) For any period or loop size, is there always an angle at which the bead can stand still relative to the loop? (e) Are there ever more than two angles? Arnold Arons suggested the idea for this problem.

Key Concepts

Rotating Frames of Reference

This concept involves analyzing motions from the perspective of a frame that is rotating relative to an inertial frame. In the problem, the bead is observed from the rotating loop, and inertial forces, such as the centrifugal force, must be introduced to account for the observed equilibrium. Understanding rotating frames is crucial when evaluating dynamic stability and equilibrium in non-inertial systems.

Centrifugal Force and Effective Gravity

In a rotating reference frame, apparent forces such as the centrifugal force arise. This effective force combines with real forces like gravity to produce a net force that determines equilibrium. The bead’s stationary position relative to the moving loop results from a balance between gravitational attraction and the centrifugal effect generated by the circular rotation of the loop.

Equilibrium Conditions in Rotational Systems

Understanding the criteria for equilibrium in a rotating system is vital. The bead remains motionless relative to the rotating loop when the net force along its path vanishes. This is achieved by balancing gravitational and inertial (centrifugal) components, a key step in analyzing forces and resulting angles in such systems.

Force Decomposition in Curvilinear Motion

This involves breaking down forces into components along directions that align with the system’s geometry. In the bead-on-a-wire problem, forces are resolved along tangential directions defined by the angle measured from the vertical. This method is central in identifying how different force components interact to yield a state of equilibrium.

Parameter Dependence in Dynamical Equilibrium

The equilibrium condition in rotating systems depends on various parameters such as the rate of rotation (or period) and the geometric dimensions of the system (like the radius of the loop). Evaluating how changes in these parameters affect the balance of forces is essential in understanding system behavior under different conditions.
