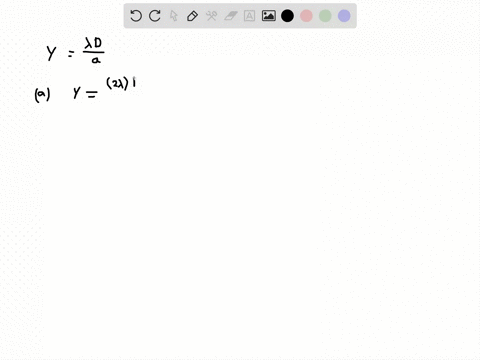

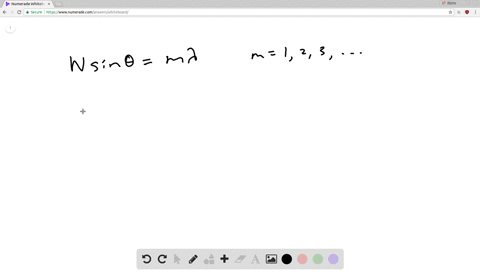

Description: A single-slit diffraction pattern is formed on a distant screen. Assuming the angles involved are small, by what factor will the width of the central bright spot on the screen change if (a) the wavelength is doubled, (b) the slit width is doubled, or (c) the distance from the slit to the screen is doubled?

A single-slit diffraction pattern is formed on a distant screen. Assuming the angles involved are small, by what factor will the width of the central bright spot on the screen change if (a) the wavelength is doubled, (b) the slit width is doubled, or (c) the distance from the slit to the screen is doubled?

A single-slit diffraction pattern is formed on a distant screen. Assuming the angles involved are small, by what factor will the width of the central bright spot on the screen change if
(a) the wavelength is doubled,
(b) the slit width is doubled, or
(c) the distance from the slit to the screen is doubled?

Key Concepts

Diffraction Pattern Scaling

The scaling of a diffraction pattern involves understanding how the width of the central maximum depends on various parameters. Specifically, in single-slit diffraction, the width of the central bright fringe is proportional to the wavelength of the light and the distance from the slit to the screen, and inversely proportional to the width of the slit. This relationship is key to predicting how changes in wavelength, slit width, or distance will affect the observed pattern.

Small-angle Approximation

The small-angle approximation is used when the angles involved in a diffraction experiment are very small, allowing sin(?) ? ? in radians. This simplification is extremely useful in analyzing diffraction patterns, as it makes it possible to derive linear relationships between the angular positions of minima or maxima and the physical parameters of the system.

Fraunhofer Diffraction

Fraunhofer diffraction refers to the far-field diffraction regime, where the light source and screen are effectively at infinite distances from the aperture, or lenses are used to simulate this condition. This approximation simplifies the analysis because the diffraction pattern corresponds to the Fourier transform of the aperture, making it easier to predict and calculate the positions and widths of the fringes.

Single-slit Diffraction

Single-slit diffraction is the phenomenon that occurs when light passes through a narrow slit, causing the light waves to spread out and interfere with one another. This interference results in a distinctive pattern on a screen, characterized by a central bright fringe with successive dark and bright fringes on either side.
