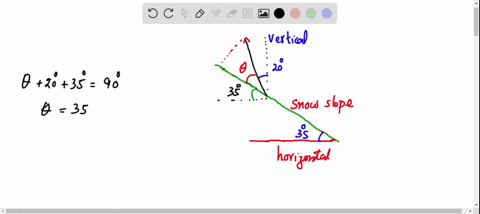

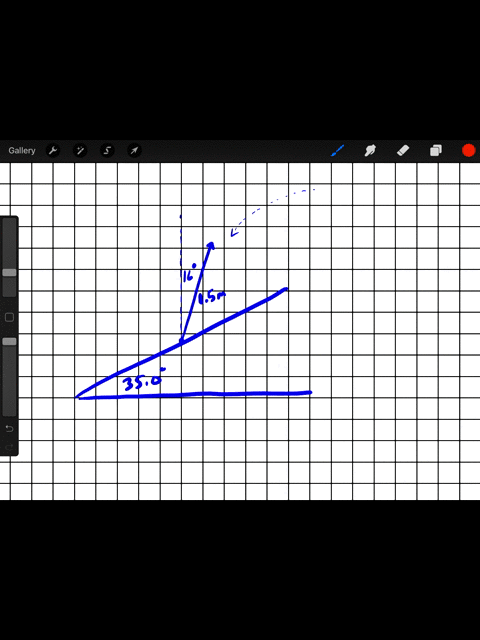

A snow-covered ski slope makes an angle of $35.0^{\circ}$ with the horizontal. When a ski jumper plummets onto the hill, a parcel of splashed snow is thrown up to a maximum displacement of $1.50 \mathrm{~m}$ at $16.0^{\circ}$ from the vertical in the uphill direction as shown in Figure $\mathrm{P} 3.16$. Find the components of its maximum displacement (a) parallel to the surface and (b) perpendicular to the surface.

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Vector Decomposition

Vector decomposition is the process of breaking a vector into components along defined axes. When analyzing motion on an inclined surface, it is often most convenient to resolve vectors into components parallel and perpendicular to the plane to simplify understanding of the forces or displacements involved.

Coordinate Transformation

Coordinate transformation involves rotating or changing the coordinate system to align with relevant features of a problem, such as an inclined plane. By rotating the axes so that one is parallel and one is perpendicular to the surface, the analysis of motion becomes more straightforward.

Trigonometric Relationships in Physics

Trigonometric functions like sine and cosine are fundamental in physics for relating angles to the lengths of sides in right triangles. They are used to determine the magnitude of vector components when a vector is projected onto axes that are not aligned with its original direction.

Relative Angle Consideration

Relative angle consideration is crucial when angles are given with respect to a different reference (such as the vertical) than the axes of interest (like those of an inclined plane). Correctly converting these angles ensures that the decomposition of vectors is accurate.
