A sphere of radius R carries a polarization 𝐏(𝐫)=k 𝐫, where k is a constant and 𝐫 is the vector

A sphere of radius R carries a polarization 𝐏(𝐫)=k 𝐫, where...

Key Concepts

Symmetry in Electrostatic Problems

Symmetry plays a crucial role in simplifying electrostatic calculations. When a system exhibits high degrees of symmetry, such as spherical or cylindrical symmetry, it becomes possible to use Gaussian surfaces aligned with that symmetry to easily evaluate the electric field. This reduces the complexity of the problem and allows for the straightforward application of Gauss's Law.

Gauss's Law in Electrostatics

Gauss's Law, one of Maxwell's equations, relates the electric flux through a closed surface to the net charge enclosed within that surface. In the context of polarized dielectrics, this principle is applied to determine the electric field by accounting for both free and bound charges, allowing for a systematic calculation of the field by exploiting the symmetry of the problem.

Polarization in Dielectrics

Polarization is a measure of the electric dipole moments induced within a dielectric material, defined as the dipole moment per unit volume. It describes how the electrons and nuclei within a material shift relative to each other when subjected to an external electric field, thereby producing an internal field that influences the overall electrical behavior of the material.

Bound Charge Densities

Bound charges arise from the spatial variation of the polarization within a material. They consist of volume bound charges, given by the negative divergence of the polarization (?_b = -?·P), and surface bound charges, which appear at the interface of the material as the dot product of the polarization with the outward normal (?_b = P · n). These bound charges are not free to move and are a consequence of the non-uniform polarization distribution.

Transcript

00:01 The idea behind using a polarization finding the bound charges is so that you can recognize charge distributions for which you have already worked out ways to find the electric field.

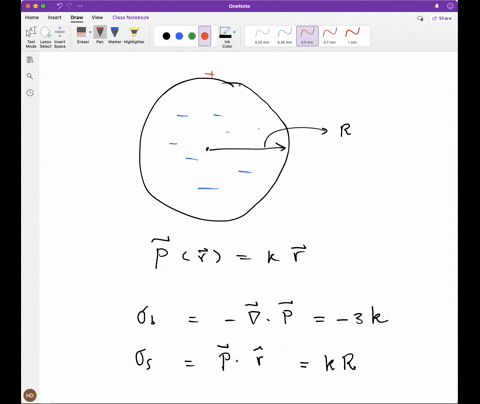

00:17 So i usually like to start, though, and draw what the polarization looks like and get some physical intuition.

00:26 So here we have the polarization occurring radially outwards, and it grows with the radius.

00:36 So i'll just show four vectors in the middle and show how they grow as you go radially outwards.

00:46 They get a little bit bigger.

00:49 And so what we can tell is that all those polarization vectors will end with their tips on the surface.

00:59 And that tells us that we are expecting a surface charge.

01:05 Density to be positive, and that will leave the bound charge density to be negative.

01:14 That will be a surplus of negative charge in the center, not the center, but the sphere to make up for the positive stuff on the surface.

01:27 But the definition of the surface charge density is p.

01:36 The normal on the surface.

01:46 And at the surface, we know that that normal points radially outwards.

01:51 So we want to pick out the radial component, which there is just a radial component in the amount of kr, but we want that at the surface.

02:06 The volume -bound density, on the other hand, is the negative of the divergence of the polarization.

02:18 And because the polarization is busting outwards, we know, therefore, it has a very big divergence.

02:27 We will use spherical coordinates to calculate that divergence.

02:39 And we need, again, the radial component.

02:43 Which is k times r.

02:48 Okay, so that is minus 1 over r squared.

02:52 K comes out, and we have the derivative with respect to r of r cubed, which is just 3r squared...
