A spring-loaded piston/cylinder arrangement contains R-134 a at 20^∘ C, 24 % quality with a volu

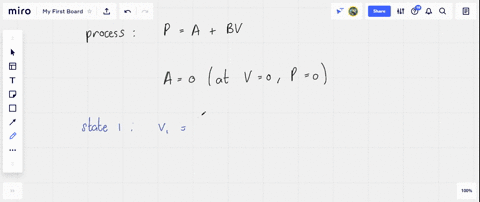

step 1 Here we have in this question, we have state 1, table B 5 .1 where V1 is equal to 0 .000 817 plu

A spring-loaded piston/cylinder arrangement contains R-134 a...

A spring-loaded piston/cylinder arrangement contains $R-134 a$ at $20^{\circ} C, 24 \%$ quality with a volume 50 L. The setup is heated and thus expands, moving the piston. It is noted that when the last drop of liquid disappears the temperature is $40^{\circ} \mathrm{C}$. The heating is stopped when $T=130^{\circ} \mathrm{C}$. Verify that the final pressure is about $1200 \mathrm{kPa}$ by iteration and find the work done in the process.

Key Concepts

Two-Phase Mixture and Quality

In thermodynamics, a two?phase mixture consists of both liquid and vapor in coexistence, and the quality (often denoted by x) is defined as the mass fraction that is vapor. This concept is fundamental when analyzing systems where phase change occurs, as it allows one to calculate mixture properties by weighting the contributions from the saturated liquid and vapor states.

Phase Change and Saturation Properties

Saturation properties refer to the state variables (such as temperature, pressure, and specific volume) at which a substance can coexist in equilibrium as both liquid and vapor. Knowledge of these properties is crucial for determining the conditions at which phase change occurs, and for tracking the transitions from saturated mixtures to superheated vapor as heat is added.

Thermodynamic Process Iteration

Iterative methods are often used in thermodynamic calculations when an explicit analytical solution is not available. In the context of piston-cylinder systems, iteration can be applied to determine unknown state quantities (such as pressure or temperature) that satisfy combined property and energy balances, especially under non-standard conditions or variable pressure processes.

Work Calculation in Piston-Cylinder Systems

Work in piston-cylinder systems is typically determined from the pressure-volume (P-V) relationship as the system undergoes expansion or compression. In cases where pressure is not constant, integrating the instantaneous pressure over the volume change or using energy balance methods is necessary to determine the total work done by or on the system during a process.

Transcript
