A spy satellite circles Earth at an altitude of 200. km and...

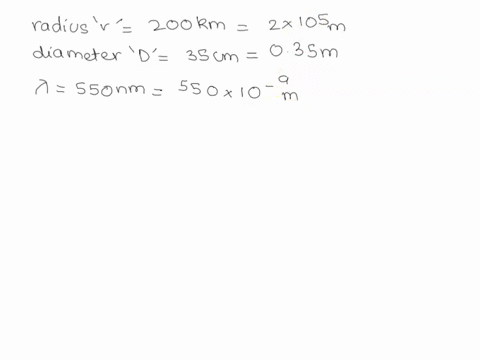

A spy satellite circles Earth at an altitude of 200. km and carries out surveillance with a special high-resolution telescopic camera having a lens diameter of 35 cm. If the angular resolution of this camera is limited by diffraction, estimate the separation of two small objects on Earth's surface that are just resolved in yellow-green light $(\lambda=550 \mathrm{nm})$

Key Concepts

Satellite Imaging Geometry

Satellite imaging geometry involves understanding how the angular resolution of the imaging system translates to linear resolution on the ground. This concept relates the angular separation that an optical system can resolve to the actual distance between objects on a surface, considering the distance (or altitude) of the satellite.

Rayleigh Criterion

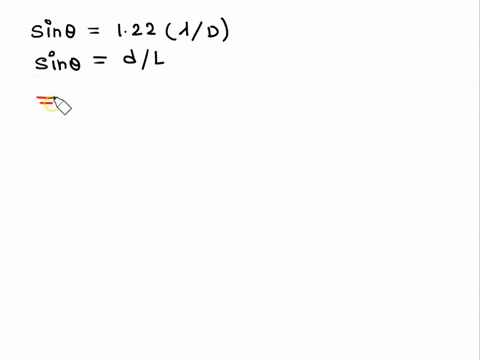

The Rayleigh criterion provides a quantitative measure for the limit of resolution due to diffraction. It states that two point sources are just resolvable when the principal maximum of one diffraction pattern coincides with the first minimum of the other, leading to the formula theta = 1.22 times the wavelength divided by the aperture diameter for circular apertures.

Optical Instrument Aperture

The aperture of an optical instrument, such as the diameter of a telescopic camera's lens, fundamentally determines its light-gathering ability and angular resolution. A larger aperture reduces the diffraction effects, thereby improving the instrument's ability to resolve finer details.

Diffraction

Diffraction is the phenomenon where waves spread out as they pass through an aperture or around an obstacle. In optics, diffraction limits the resolving power of imaging systems because even a perfect lens cannot focus light to an infinitely small point, thereby setting a fundamental limit on image clarity.

Angular Resolution

Angular resolution is the ability of an optical system to distinguish between two closely spaced objects. It is typically expressed as the smallest angle between two points that can be distinctly separated, and is crucial in determining the effectiveness of devices such as telescopes and cameras.
