A square insulating sheet 80.0 cm on a side is held horizontally. The sheet has 7.50 nC of char

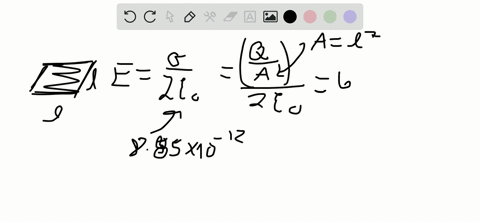

step 1 For this problem on the topic of Kauser's law, we are told that a square insulating sheet that h

A square insulating sheet 80.0 cm on a side is held...

A square insulating sheet $80.0 \mathrm{~cm}$ on a side is held horizontally. The sheet has $7.50 \mathrm{nC}$ of charge spread uniformly over its area. (a) Calculate the electric field at a point $0.100 \mathrm{~mm}$ above the centre of the sheet. (b) Estimate the electric field at a point $100 \mathrm{~m}$ above the centre of the sheet. (c) Would the answers to parts (a) and (b) be different if the sheet were made of a conducting material? Why or why not?

Key Concepts

Near-Field and Far-Field Approximations

These approximations refer to the behavior of the electric field at different distances from the charged surface. In the near-field region (when the point of interest is very close to the surface compared to its dimensions), the field can often be approximated by that of an infinite plane, leading to a nearly uniform field. In the far-field region (at distances much larger than the dimensions of the charge distribution), the charge distribution behaves effectively as a point charge, and the electric field diminishes with the square of the distance.

Conductors versus Insulators in Charge Distribution

This concept explores how the material properties influence charge behavior. In an insulator, charges are fixed in place, so the uniform distribution remains unchanged. In a conductor, however, the charges are free to move and will redistribute themselves, typically accumulating at the surfaces to minimize repulsive forces. Despite this redistribution, if the overall macroscopic charge distribution remains similar, the external field in regions away from the conductor might not differ significantly from that of an insulator. Understanding these differences is key to predicting the resultant electric field in various scenarios.

Uniform Surface Charge Distribution

This concept deals with the idea that charge is spread evenly over an area. When the distribution is uniform, a constant surface charge density (charge per unit area) is defined, which simplifies the calculation of the electric field. It is a foundational assumption in many problems in electrostatics that allows for the application of symmetry arguments and standard formulas.

Electric Field from Distributed Charges

Calculating the electric field due to a charged object with a finite area requires integrating the contributions from each infinitesimal part of the surface. However, in certain cases, approximations (such as assuming an infinite plane or a point charge) can simplify the process, depending on the distance from the surface relative to its size.
