A steam power plant operates on the reheat Rankine cycle....

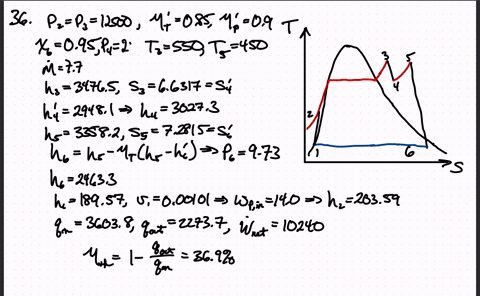

A steam power plant operates on the reheat Rankine cycle. Steam enters the high-pressure turbine at $12.5 \mathrm{MPa}$ and $550^{\circ} \mathrm{C}$ at a rate of $7.7 \mathrm{~kg} / \mathrm{s}$ and leaves at 2 MPa. Steam is then reheated at constant pressure to $450^{\circ} \mathrm{C}$ before it expands in the low-pressure turbine. The isentropic efficiencies of the turbine and the pump are 85 percent and 90 percent, respectively. Steam leaves the condenser as a saturated liquid. If the moisture content of the steam at the exit of the turbine is not to exceed 5 percent, determine $(a)$ the condenser pressure, $(b)$ the net power output, and $(c)$ the thermal efficiency. This problem is solved using appropriate software.

Key Concepts

Rankine Cycle

The Rankine cycle is the fundamental thermodynamic cycle used in steam power plants to convert heat into work. It involves the generation of high-pressure steam in a boiler, expansion in a turbine to produce work, condensation of steam into water (usually in a condenser), and then pressurization by a pump back to the boiler. This cycle forms the basis for understanding and analyzing steam power generation systems.

Reheat Cycle

The reheat cycle is an enhancement of the basic Rankine cycle where, after partial expansion in the turbine, the working fluid (steam) is reheated at constant pressure before undergoing further expansion in a subsequent turbine stage. Reheating helps maintain higher average temperatures during expansion, thereby increasing the thermal efficiency and reducing moisture content in the low-pressure turbine, which is important for protecting turbine blades from erosion.

Isentropic Efficiency

Isentropic efficiency is a measure of the performance of turbines and pumps, comparing the actual process to an ideal, reversible (isentropic) process. For turbines, it represents the ratio of actual work output to the work output in an ideal, isentropic process, while for pumps it is the ratio of ideal work required to the actual work input. Lower efficiencies indicate greater losses and deviations from ideal behavior, and understanding these efficiencies is crucial for accurate performance analysis of power cycles.

Moisture Content and Quality

In steam turbines, the quality of steam (i.e., the dryness fraction) is critical since the presence of moisture can lead to blade erosion and reduced efficiency. Problems that specify a maximum allowable moisture content force engineers to determine appropriate operating parameters, such as the ideal condenser pressure, to ensure that the steam remains sufficiently dry after expansion.

Component Energy Balances

Calculating net power output and thermal efficiency requires performing energy balances over the cycle components, including the turbines, condenser, boiler, and feed pump. This involves accounting for work production in the turbines, work consumption by the pumps, and the heat input from the fuel combustion process. Analyzing these energy exchanges is key to determining the overall plant performance.

Condenser Pressure Determination

The condenser pressure in a steam power plant is influenced by the moisture content of the steam leaving the turbine. Control of condenser pressure is essential to maintain acceptable steam quality and optimize the cycle's efficiency and performance. It involves thermodynamic property calculations to ensure that the final steam meets the specified dryness requirements.
