A steel wire of length 30.0 m and a copper wire of length 20.0 m, both with 1.00 -mm diameters,

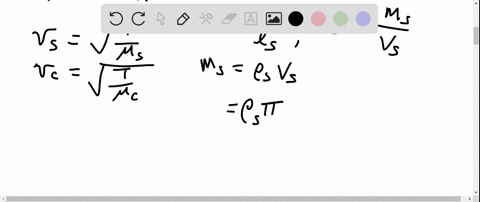

step 1 We know that the density of a steel wire is equal to 8 ,050 kilograms per meter cubed. We also k

A steel wire of length 30.0 m and a copper wire of length...

A steel wire of length 30.0 m and a copper wire of length $20.0 \mathrm{m},$ both with 1.00 -mm diameters, are connected end to end and stretched to a tension of 150 $\mathrm{N}$ . During what time interval will a transverse wave travel the entire length of the two wires?

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

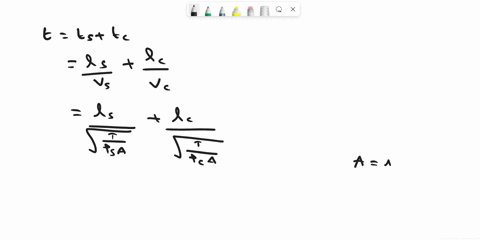

Propagation Time Calculation

This concept involves computing the total travel time of a wave as it moves through different segments of media by summing the times taken to travel each individual segment. In problems involving multiple materials or wires, each segment’s length is divided by its respective wave speed, and the results are added together to find the overall time interval for the wave to traverse the entire path.

Linear Mass Density

Linear mass density, denoted by ?, is defined as the mass per unit length of a material. It is a critical factor in wave propagation problems because it directly affects the wave speed when a medium is under tension. The density and cross-sectional area of the material are used to calculate ?, which then informs how quickly waves will travel along the medium.

Transverse Wave Speed on a String

This concept refers to the formula v = ?(T/?), where v is the speed of the transverse wave on a string or wire, T represents the tension force in the medium, and ? is the linear mass density. It is essential for understanding how the properties of the medium and the applied tension influence the speed at which waves propagate through it.
