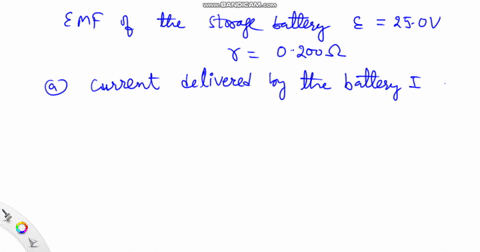

A storage battery has an emf of 25.0 V and an internal resistance of 0.200 Ω. Compute its termin

step 1 In this given problem, EMF means electromagnetic force of the storage battery that is given as e

A storage battery has an emf of 25.0 V and an internal...

Key Concepts

Electromotive Force (EMF)

EMF is the ideal voltage provided by a battery when no current flows. It represents the energy per unit charge supplied by the battery and forms the basis for analyzing how the battery's voltage is affected under load.

Internal Resistance

Internal resistance refers to the inherent resistance within the battery that results in a voltage drop when current passes through. This resistance causes the terminal voltage to differ from the EMF during both discharge and charge events.

Terminal Voltage

Terminal voltage is the actual voltage measured across the battery’s terminals when current is flowing. It is affected by the voltage drop across the internal resistance and is calculated by adjusting the EMF accordingly depending on whether the battery is discharging or being charged.

Ohm's Law

Ohm's Law (V = IR) is used to calculate the voltage drop across a resistor for a given current. When applied to internal resistance, it helps determine how much the battery's terminal voltage deviates from its EMF.

Sign Conventions in Charging and Discharging

The sign conventions differentiate whether the battery is delivering current (discharging) or receiving current (charging). For discharging, the voltage drop due to the internal resistance subtracts from the EMF, while for charging, the drop is added to the EMF, reflecting the opposite direction of current flow.
