A strong electromagnet produces a uniform magnetic field of...

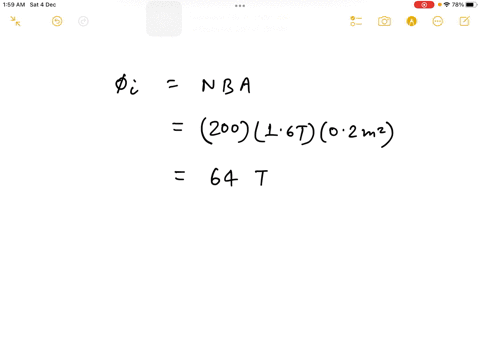

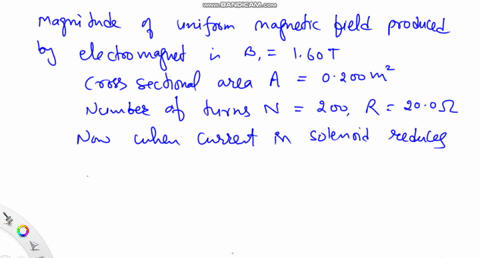

A strong electromagnet produces a uniform magnetic field of 1.60 T over a cross-sectional area of $0.200 \mathrm{m}^{2} . \mathrm{A}$ coil having 200 turns and a total resistance of 20.0$\Omega$ is placed around the electromagnet. The current in the electromagnet is then smoothly reduced until it reaches zero in 20.0 ms. What is the current induced in the coil?

A strong electromagnet produces a uniform magnetic field of 1.60 T over a cross-sectional area of $0.200 \mathrm{m}^{2} . \mathrm{A}$ coil having 200 turns and a total resistance of 20.0$\Omega$ is placed around the electromagnet. The current in the electromagnet is then smoothly reduced until it reaches
zero in 20.0 ms. What is the current induced in the coil?

Key Concepts

Magnetic Flux

Magnetic flux is the measure of the total magnetic field passing through a surface. It combines the magnetic field strength and the area through which the field lines pass, accounting for the orientation of the surface relative to the field. Variations in magnetic flux are the fundamental trigger for electromagnetic induction phenomena.

Faraday's Law of Electromagnetic Induction

Faraday's Law states that any change in the magnetic flux through a circuit induces an electromotive force (EMF) in that circuit. This law quantitatively relates the induced EMF to the rate of change of magnetic flux and the number of turns in the coil, making it essential for understanding how varying magnetic fields can generate electrical currents.

Lenz's Law

Lenz's Law determines the direction of the induced current resulting from a changing magnetic flux. It states that the induced current will flow in such a direction that its magnetic field opposes the change in the original magnetic flux, serving as a manifestation of the conservation of energy in electromagnetic systems.

Ohm's Law

Ohm's Law is a basic principle that relates the voltage (or electromotive force), current, and resistance in an electrical circuit. It is used to calculate the current resulting from an induced voltage by dividing the EMF by the resistance, thereby linking the concepts of electromagnetic induction to practical circuit behavior.
