A supersonic jet traveling at Mach 3.00 at an altitude of h=20000 m is directly over a person at

step 1 If we have a supersonic jet traveling at Mark 3 and we have an observer directly below the jet a

A supersonic jet traveling at Mach 3.00 at an altitude of...

A supersonic jet traveling at Mach 3.00 at an altitude of $h=20000 \mathrm{m}$ is directly over a person at time $t=0$ as shown in Figure $\mathrm{P} 17.45 .$ Assume the average speed of sound in air is 335 $\mathrm{m} / \mathrm{s}$ over the path of the sound. (a) At what time will the person encounter the shock wave due to the sound emitted at $t=0 ?$ (b) Where will the plane be when this shock wave is heard?

Key Concepts

Mach Number

The Mach number is the ratio of an object's speed to the speed of sound in the surrounding medium. It is a dimensionless quantity used in fluid dynamics to specify whether the motion is subsonic, transonic, or supersonic. When the Mach number exceeds one, shock waves and other aerodynamic phenomena become significant.

Shock Wave Formation

Shock waves occur when an object travels faster than the speed of sound, causing the sound waves it generates to compress into a conical pattern. This results in a sudden and drastic change in pressure, temperature, and density along the shock front, often experienced as a sonic boom by observers.

Sound Propagation Time Delay

Sound propagation time delay refers to the interval between the emission of a sound and its detection by an observer at a distance. This delay depends on the speed of sound in the medium and the distance the sound wave must travel, and is crucial in scenarios where the source is moving at high speeds.

Geometric Analysis of Shock Waves

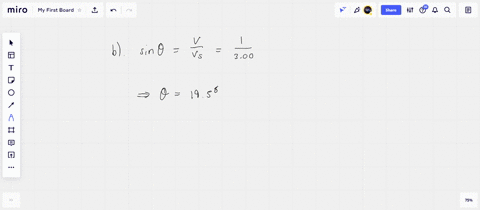

The geometric analysis of shock waves involves understanding the spatial relationship between the moving object, the observer, and the shock wave front often modeled as a Mach cone. This analysis employs concepts such as the Mach angle to determine when and where an observer will experience the shock wave, based on the object’s velocity and trajectory.
