A transformer is to be used to match an $8-\Omega$ loudspeaker to a $500-\Omega$ audio line. What is the turns ratio of the transformer, and what are the voltages at the primary and secondary terminals when 10 W of audio power is delivered to the speaker? Assume that the speaker is a resistive load and that the transformer is ideal.

   A transformer is to be used to match an $8-\Omega$ loudspeaker to a $500-\Omega$ audio line. What is the turns ratio of the transformer, and what are the voltages at the primary and secondary terminals when 10 W of audio power is delivered to the speaker? Assume that the speaker is a resistive load and that the transformer is ideal.
Show more…
Principles and Applications of Electrical Engineering
Principles and Applications of Electrical Engineering
Giorgio Rizzoni,… 7th Edition
Chapter 14, Problem 22 ↓
AceChat toggle button
Close icon
Ace pointing down

Please give Ace some feedback

Your feedback will help us improve your experience

Thumb up icon Thumb down icon
Thanks for your feedback!
Profile picture
A transformer is to be used to match an $8-\Omega$ loudspeaker to a $500-\Omega$ audio line. What is the turns ratio of the transformer, and what are the voltages at the primary and secondary terminals when 10 W of audio power is delivered to the speaker? Assume that the speaker is a resistive load and that the transformer is ideal.
Close icon
Play audio
Feedback
Powered by NumerAI
Kathleen Carty Danielle Fairburn
David Collins verified

Donald Albin and 83 other educators are ready to help you.

Ask a new question

*

Labs

-

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

*

Recommended Videos

-
an-output-impedance-of-an-audio-amplifier-has-an-impedance-of-500-omega-and-has-a-mismatch-with-a-lo

An output impedance of an audio amplifier has an impedance of $500 \Omega$ and has a mismatch with a low-impedance $8-\Omega$ loudspeaker. You are asked to insert an appropriate transformer to match the impedance's. What turns ratio will you use, and why? Use the simplified circuit shown below.

University Physics

what-transformer-turns-ratio-is-required-to-match-an-8-speaker-load-so-that-the-effective-load-resistance-seen-at-the-primary-is-128-k-58928

What transformer turns ratio is required to match an 8-Ω speaker load so that the effective load resistance seen at the primary is 12.8 kΩ?


*

Transcript

-
00:01 All right.

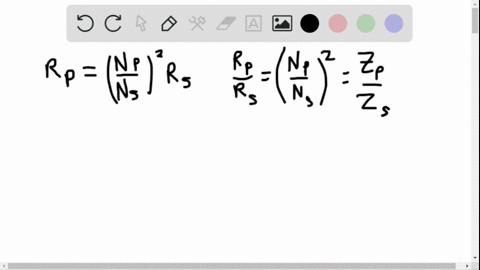

00:05 Basically for this question, i want the 8 -oam loudspeaker to match the 500 oms of the audio amplifier.
