Transverse Wave Motion
Transverse waves are disturbances that move along a medium in which the displacement of the medium is perpendicular to the direction of wave propagation. This concept explains how energy and information can travel through a medium without transporting matter, and is fundamental in analyzing vibrations on strings, membranes, and other systems.
Wave Speed on a String
The wave speed on a string is determined by the tension in the string and its linear mass density, typically expressed as v = ?(T/?). This relation is critical for understanding how changes in tension or density affect wave propagation, and it forms the foundation for analyzing dynamic behavior in string-related problems.
Sinusoidal Wave Properties
A sinusoidal wave is characterized by its amplitude, frequency, wavelength, and phase. The amplitude represents the maximum displacement from equilibrium, the frequency describes the number of oscillations per unit time, the wavelength is the spatial period of the wave, and the phase determines the state of oscillation at a given point in space and time. Understanding these properties is essential for predicting the behavior of waves, such as how displacement, velocity, and acceleration vary with time.

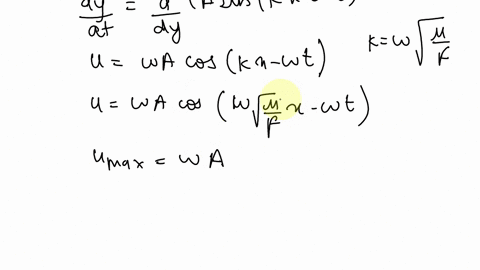

Transverse Particle Velocity
The transverse velocity of a particle in the medium is the rate of change of its displacement with time. For sinusoidal motion, this velocity is obtained by differentiating the wave function with respect to time, showing that the maximum transverse speed occurs when the particle passes through the equilibrium position. This concept links the motion of individual particles to the overall wave pattern.
Transverse Component of Tension
While the string is under an overall tension, the transverse component of this tension arises due to the curvature of the wave. This component is related to the spatial derivative of the wave profile and is responsible for providing the restoring force that maintains the wave’s motion. Understanding this force component is crucial for analyzing the dynamics of oscillations on a string.
Phase Relationships in Sinusoidal Waves
The phase of a sinusoidal wave determines the instantaneous state of oscillation of particles in the medium. Different physical quantities, such as displacement, velocity, and force, reach their maximum or zero values at specific phase angles. Recognizing these phase relationships is key to showing, for instance, that the maximum transverse speed and the maximum transverse force occur at particular, predictable phases of the wave cycle.
Energy Transport in Waves
Waves transport energy through a medium, and in the case of mechanical waves on a string, this energy is due to both the kinetic energy of the moving particles and the potential energy stored in the string due to its deformation. The rate of energy transfer, or power, depends on the properties of the wave and the medium, and it is a central concept in understanding how waves perform work over a distance.
Instantaneous and Average Power in a Wave
The power transmitted by a wave is the rate at which energy is carried along the string. This power can be expressed as a function of time and is linked to both the transverse velocity of the medium’s particles and the tension in the string. In many problems, it is useful to determine the instantaneous power as well as its average over one or more cycles to understand the energetic efficiency of wave propagation.
