A turbocharger boosts the inlet air pressure to an automobile engine. It consists of an exhaust gas driven turbine directly connected to an air compressor, as shown in Fig. P9.43. For a certain engine load, the conditions are given in the figure. Assume that both the turbine and the compressor are reversible and adiabatic, having also the same mass flow rate. Calculate the turbine exit temperature and power output. Find also the compressor exit pressure and temperature.

Key Concepts

Turbocharger Operation

A turbocharger is a system where a turbine and a compressor are connected on the same shaft to enhance engine performance. The turbine extracts energy from the engine’s exhaust gases, while the compressor uses that energy to boost the pressure of the incoming air. This integration increases the air density entering the engine, which can improve combustion efficiency and power output.

Isentropic (Reversible Adiabatic) Process

When both the turbine and compressor are assumed to be reversible and adiabatic, they operate isentropically, meaning that there is no change in entropy during the process. This assumption allows the use of isentropic relations to link pressure and temperature changes throughout the components, simplifying the analysis and enabling precise calculation of exit temperatures and pressures based on known inlet conditions and pressure ratios.

Energy Balance and Work Calculations

The analysis of the turbocharger involves applying the first law of thermodynamics, or energy conservation, to quantify the work interactions in both the turbine and the compressor. The work output from the turbine (extracting energy from exhaust gases) is related to the change in enthalpy, and it must balance the work required by the compressor to increase the intake air pressure. Understanding these energy interactions is key to determining performance parameters such as exit temperatures, pressures, and overall power output.

Mass Flow Rate Considerations

The assumption that both the turbine and the compressor have the same mass flow rate is critical to the analysis because it allows for a direct comparison of energy processes between the two components. This assumption ensures that the energy extracted by the turbine is effectively transferred to the air being compressed by the compressor, thereby simplifying the energy balance and calculation process.

Transcript

00:01 So here, we have the quick diagram.

00:03 We have a turbine, steady, single flows for both the inlet and the exit.

00:09 Steady single flows, then adiabatic and reversible.

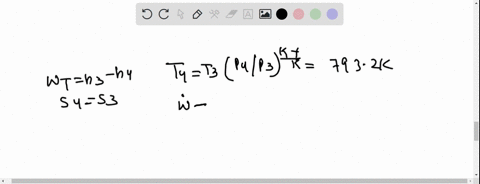

00:22 So we can first say that the specific work for the turbine equaling then h -7 -3 minus h -7 -4, s -4 -4 equaling s -3 for the turbine, we know that we can use the property.

00:37 Relation equation 832 taking a look at table 8 .5 for k if s sub 4 equaling s sub 3 within the turbine we can say that then the temperature sub 4 equaling the temperature sub 3 multiplied by the pressure at 4 divided by the pressure at 3 raised to the k minus 1 over k power this is going to be equal to 930 rather 920 23 .2 multiplied by 100 divided by 170 raised to the .286 power and this is giving us then 793 .2 kelvin.

01:23 We can say that then the specific work for the turbine equaling h sub 3 minus h sub 4.

01:29 This is going to be equal to the specific heat capacity multiplied by t sub 3 minus t sub 4.

01:40 This would be equaling then to 1 .004 multiplied by 9223 .2 minus 793 .2.

01:54 And this is giving us then the specific work being 130 .5 kilojoules per kilogram.

02:09 The rate of work then, the time rate of work for the turbine would then be equaling to the mass transfer rate multiplied by the specific work.

02:18 And once we take the product, this is 13 .05 kilowatts, given that the mass transfer rate is 0 .1 kilograms per second.

02:32 So given this, we can then take a look at the compressor...
